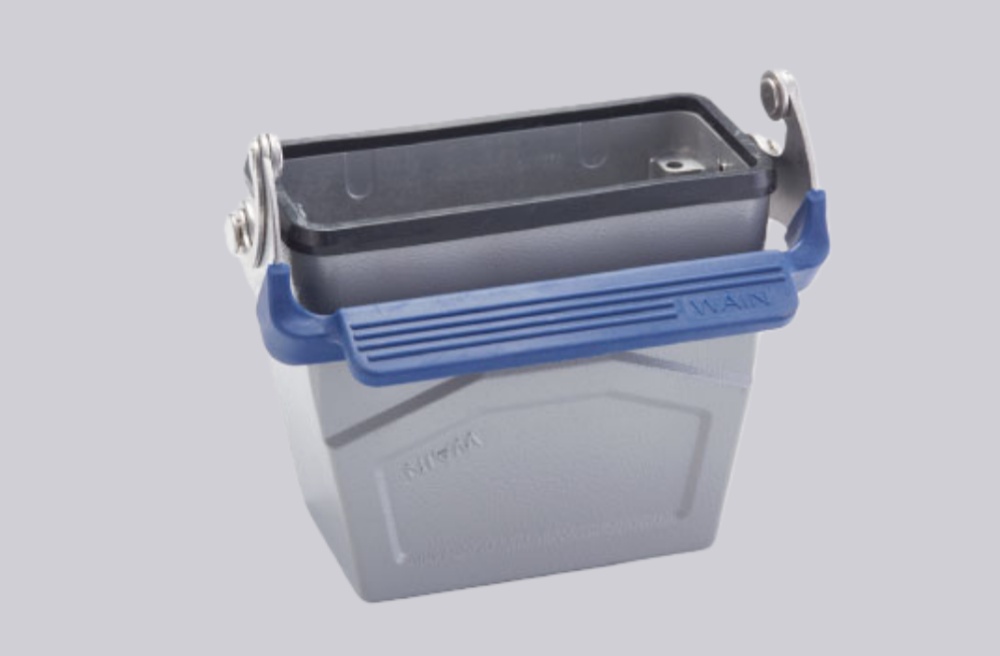

The W16B-CCTH-1L/SC-M40 is a compact and reliable industrial connector housing designed for secure and stable electrical connections in demanding applications. Manufactured from high-quality die-cast aluminum with a durable powder-coated finish, it provides excellent mechanical strength and corrosion resistance for long-term industrial use.
Equipped with a single-latch (1L) locking mechanism, this housing ensures firm mating and prevents accidental disconnection. The top outlet design allows efficient cable routing, while NBR sealing provides effective protection against dust, moisture, and harsh environmental conditions.
Compliant with UL94 V0 flame retardant standards and suitable for a wide operating temperature range of -40℃ to +125℃, the W16B-CCTH-1L/SC-M40 is ideal for automation equipment, machinery, and control systems. Its professional RAL 7037 field gray finish combines durability, safety, and ease of installation in industrial environments.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Cable butting (flying lead lower housing) |
| Outgoing method | Top outlet |
| Locking type | Single lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP67 |
