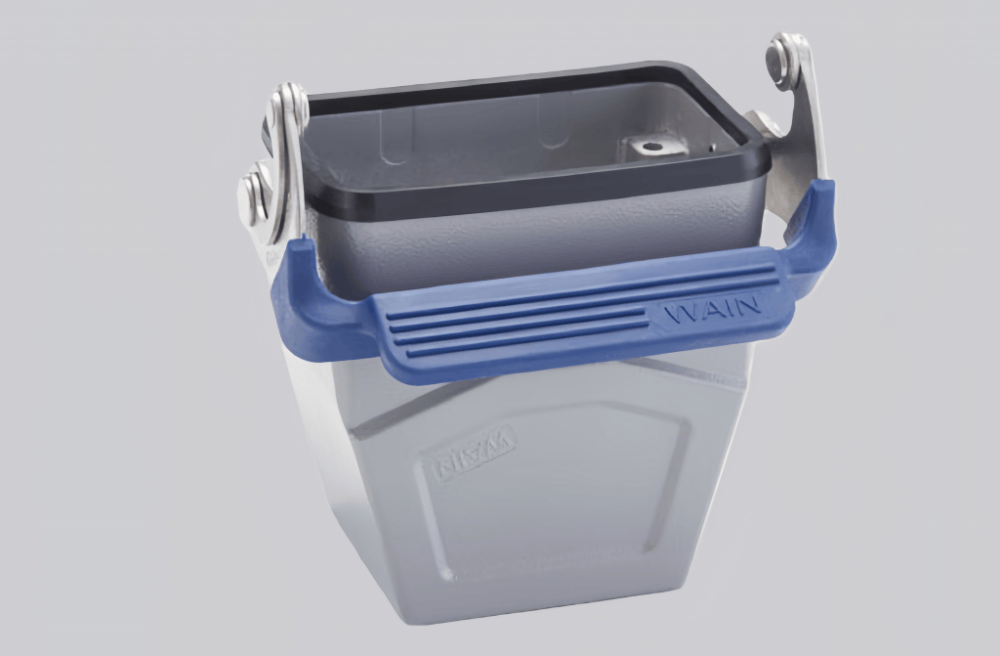

The W10B-CCTH-1L/SC-PG29 is a heavy-duty connector housing designed for reliable performance in demanding industrial environments. Featuring a compact 10B size with a central cable entry and top outlet design, it supports neat cable routing and efficient installation in control cabinets and industrial machinery. The single locking structure ensures secure mating and stable connection during normal operation.
Constructed from high-quality die-casting aluminum, the housing is protected by a durable powder-coated finish that offers excellent resistance to corrosion, impact, and harsh working conditions. The PG29 threaded cable entry provides firm cable fixation and effective strain relief, while the metal elastic interlocking mechanism ensures long-term connection reliability. Integrated sealing components help prevent dust and moisture ingress.
Ideal for automation systems, power distribution, and industrial control applications, the W10B-CCTH-1L/SC-PG29 combines rugged construction with dependable locking performance. Its robust design, reliable sealing, and ease of installation make it a practical solution for consistent operation in harsh industrial environments.
Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Cable butting (flying lead lower housing) |
| Outgoing method | Top outlet |
| Locking type | Single lock |
| Thread | PG29 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP67 |
