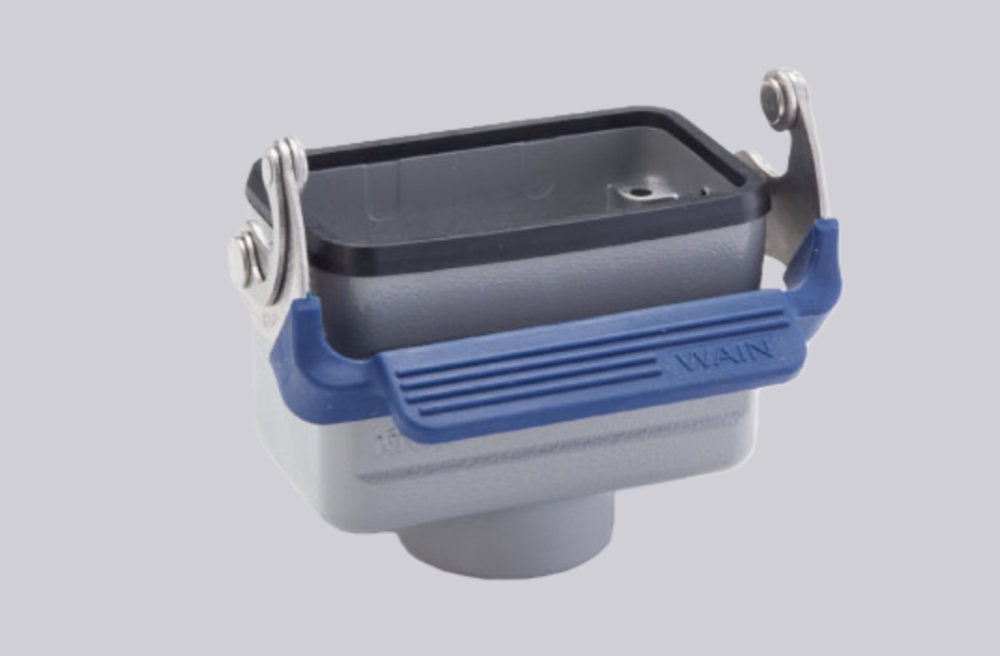

The W10B-CCT-1L/SC-M20 is a compact and reliable metal housing designed for industrial connector applications that require secure and stable connections. Made from high-quality die-cast aluminum, it provides excellent mechanical strength and long-term durability. The surface-treated finish enhances corrosion resistance, ensuring dependable performance even in challenging industrial environments.
Equipped with a bottom outlet and M20 thread, the W10B-CCT-1L/SC-M20 allows easy cable installation and effective strain relief. Its single locking mechanism ensures a secure connection while preventing accidental disengagement during operation. NBR sealing elements provide reliable protection against dust and moisture, safeguarding the internal components.
Rated for an operating temperature range of -40°C to +125°C and compliant with UL94 V0 flame retardant standards, the W10B-CCT-1L/SC-M20 is ideal for use in industrial machinery, automation systems, and control equipment where safety, durability, and consistent connectivity are essential.
Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Cable butting (flying lead lower housing) |
| Outgoing method | Top outlet |
| Locking type | Single lock |
| Thread | M20 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating (UL94) | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP67 |
