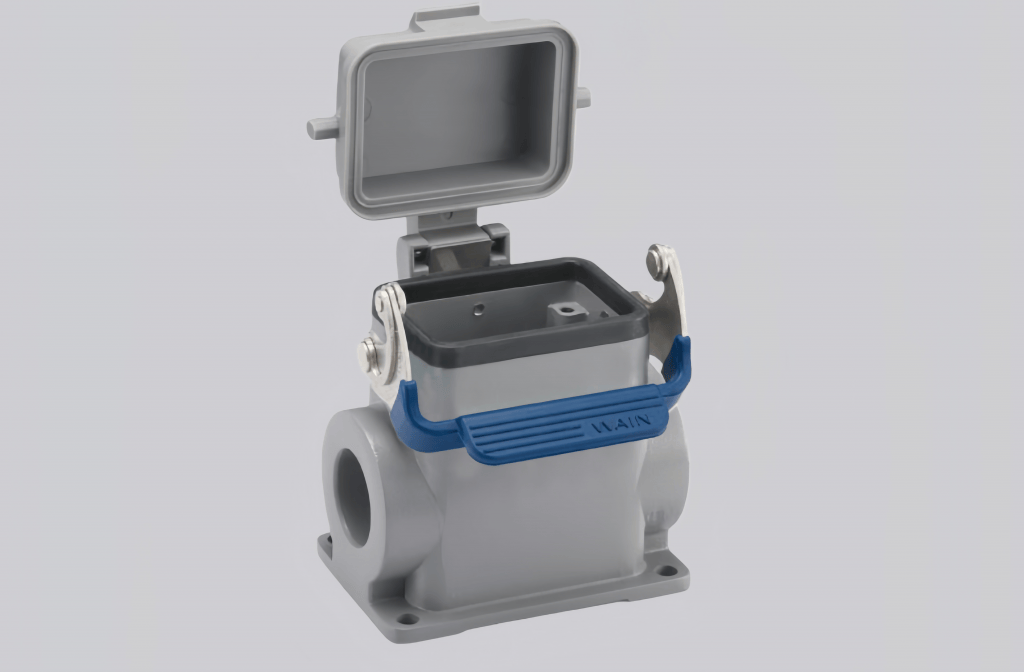

The H6B-SFH-1L/SC-MCV-M25 is designed for industrial connector systems that demand reinforced side cable entry and stable housing support. Its structure allows controlled cable guidance while helping to minimize bending stress at the connection point. The single locking configuration ensures reliable coupling and maintains secure positioning during continuous operation.
The housing is made from die-cast aluminum, offering a solid and impact-resistant enclosure for demanding industrial environments. A powder-coated surface in RAL 7037 field gray enhances durability by protecting against corrosion, abrasion, and environmental exposure. The M25 cable interface is optimized for firm cable holding, supporting safe and orderly wiring arrangements.
With a metal elastic interlocking interface supported by stainless steel and TPR components, the design emphasizes long-term mechanical reliability and structural safety. Suitable for automation systems, electrical control cabinets, and industrial machinery, the H6B-SFH-1L/SC-MCV-M25 delivers dependable protection, efficient installation, and stable performance in heavy-duty connector applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ ~ +125℃ |
| Protection rating | IP65 |
