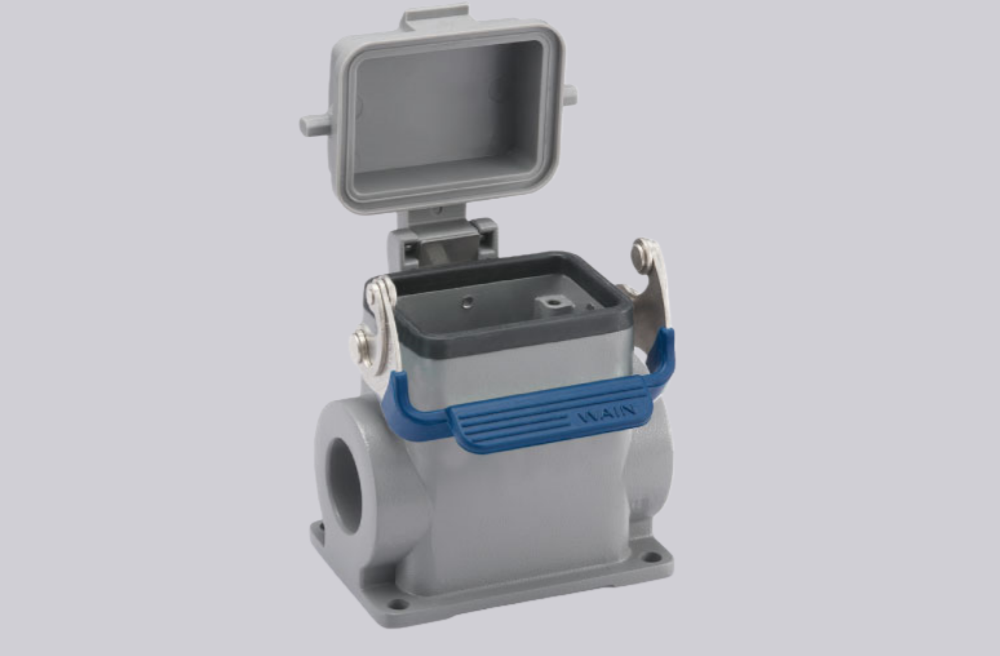

The H6B-SFH-1L/SC-MCV-2PG29 is engineered for industrial systems that require dual reinforced side cable entries for large-diameter wiring. Its two PG29 interfaces enable clear separation of cables, supporting orderly layouts and reducing mechanical load at the connection point. The single locking design ensures stable coupling and dependable operation in demanding working conditions.
The housing is manufactured from die-cast aluminum, delivering high rigidity and structural stability for long-term industrial use. A powder-coated surface in RAL 7037 field gray provides effective resistance to corrosion, abrasion, and environmental influences. The side-entry structure is well suited for installations where space control and cable direction are critical.
An elastic metal interlocking system, combined with stainless steel and TPR components, enhances mechanical reliability and service life. Widely applied in automation equipment, electrical cabinets, and heavy machinery, the H6B-SFH-1L/SC-MCV-2PG29 offers organized cable management, strong enclosure protection, and consistent performance for heavy-duty connector applications.

Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG29 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ ~ +125℃ |
| Protection rating | IP65 |
