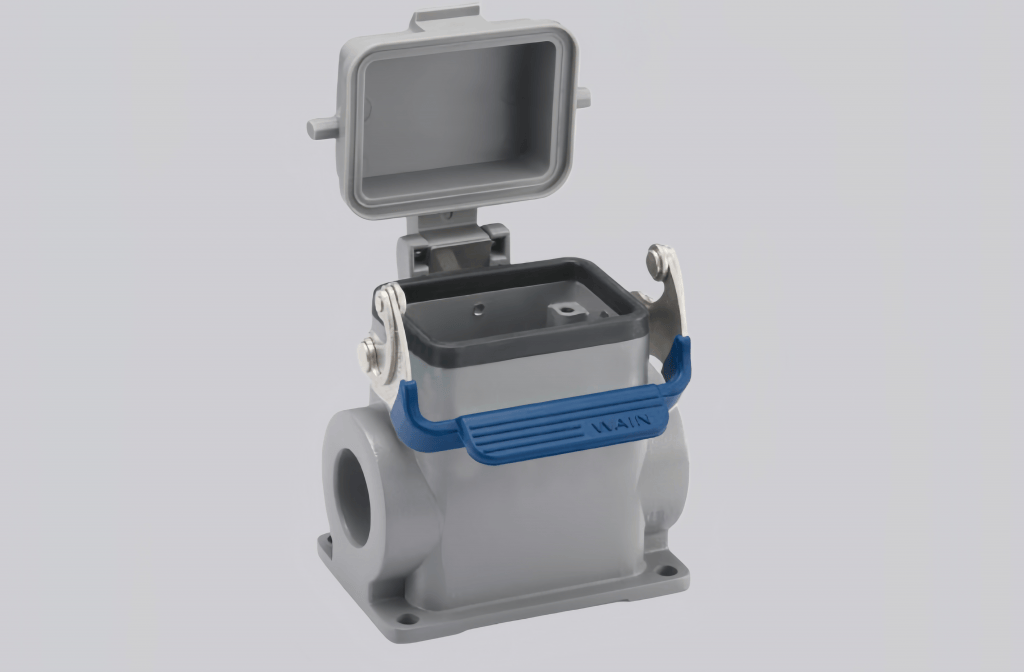

The H6B-SFH-1L/SC-MCV-2M32 is designed for industrial installations that require dual reinforced side cable entries for large-diameter cables. Its two M32 interfaces support efficient routing and separation of heavy cables while maintaining a compact and organized wiring layout. The single locking configuration ensures secure engagement and stable mechanical retention during operation.
The housing is manufactured from die-cast aluminum, providing a robust enclosure suitable for demanding industrial environments. A powder-coated finish in RAL 7037 field gray enhances resistance to corrosion, abrasion, and external mechanical stress. Integrated sealing components help protect internal connections from dust and moisture ingress.
The elastic metal interlocking mechanism, combined with stainless steel and TPR materials, ensures long-term durability and operational reliability. Well suited for automation systems, electrical cabinets, and heavy machinery, the H6B-SFH-1L/SC-MCV-2M32 delivers reliable protection, efficient cable management, and consistent performance in heavy-duty connector applications.

Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ ~ +125℃ |
| Protection rating | IP65 |
