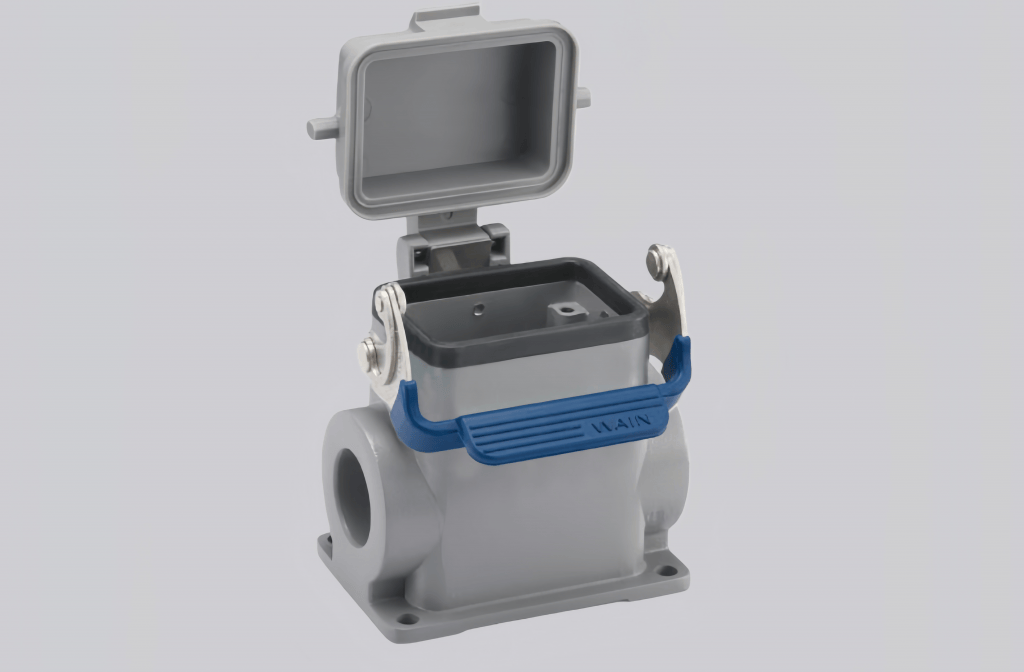

The H6B-SFH-1L/SC-CV-2M25 is designed for industrial applications that require dual cable entries with additional mechanical support at the connector interface. Its side-entry layout with two M25 connections enables efficient cable separation and organized routing, helping reduce stress on wiring in complex installations. The single locking structure ensures stable engagement during operation.
The housing is manufactured from die-cast aluminum, providing a rigid enclosure suitable for demanding industrial environments. A powder-coated finish in RAL 7037 field gray enhances resistance to corrosion, surface wear, and external impact. Integrated sealing components help protect internal connections from dust and moisture ingress.
The elastic metal interlocking mechanism, reinforced with stainless steel and TPR materials, ensures long-term durability and mechanical reliability. Suitable for automation equipment, control cabinets, and industrial machinery, the H6B-SFH-1L/SC-CV-2M25 delivers efficient cable management, robust protection, and dependable performance in heavy-duty connector applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
