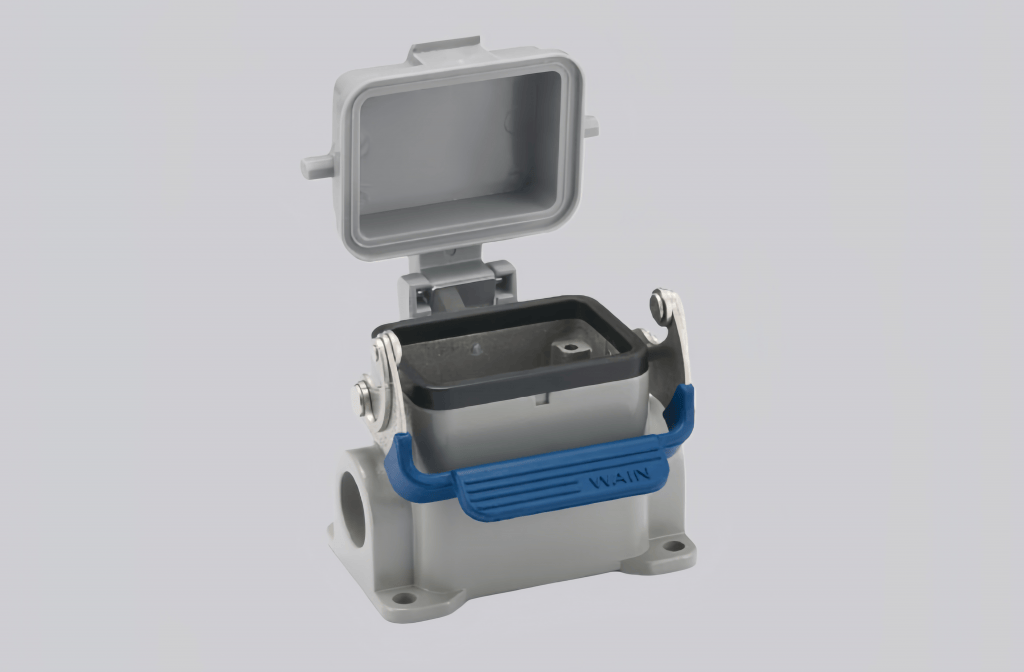

The H6B-SF-1L/SC-MCV-M25 is designed for industrial applications where larger cable diameters and stable mechanical support are required. Its side outlet structure with an M25 interface allows smooth cable entry while maintaining a compact and organized wiring layout. The single locking configuration supports secure coupling and reliable operation in equipment exposed to movement or vibration.
The housing is manufactured from die-cast aluminum, offering a solid enclosure that performs well in demanding environments. A powder-coated finish in RAL 7037 field gray improves resistance to surface wear, corrosion, and external stress. The M25 cable interface is engineered to provide firm cable retention, supporting safe and consistent electrical performance.
An elastic metal interlocking system, supported by stainless steel and TPR components, enhances structural resilience and service life. Commonly used in automation systems, electrical distribution units, and industrial machinery, the H6B-SF-1L/SC-MCV-M25 delivers reliable protection, efficient installation, and dependable functionality for heavy-duty connector applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
