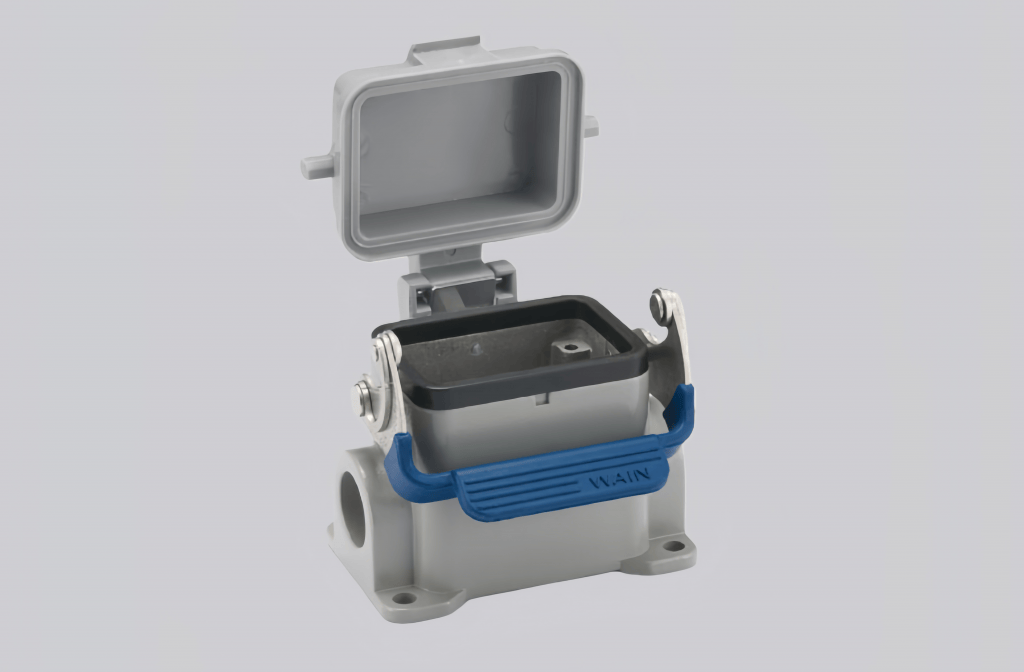

The H6B-SF-1L/SC-MCV-M20 is developed for industrial systems that require enhanced cable protection and controlled routing at the connector interface. Its side-entry structure supports efficient wiring while maintaining a compact installation footprint. The single locking configuration ensures stable coupling and dependable operation in environments subject to vibration and mechanical movement.
The housing is formed from die-cast aluminum, providing a rigid and reliable enclosure for demanding applications. A powder-coated surface in RAL 7037 field gray improves resistance to corrosion, surface wear, and environmental exposure. The M20 cable entry, combined with an integrated sealing design, supports secure cable fixation and environmental shielding.
With a metal elastic interlocking interface and reinforced stainless steel and TPR components, the structure is optimized for long-term mechanical stability. Suitable for automation equipment, electrical enclosures, and industrial machinery, the H6B-SF-1L/SC-MCV-M20 offers durable construction, practical installation, and consistent performance in heavy-duty connection solutions.

Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M20 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
