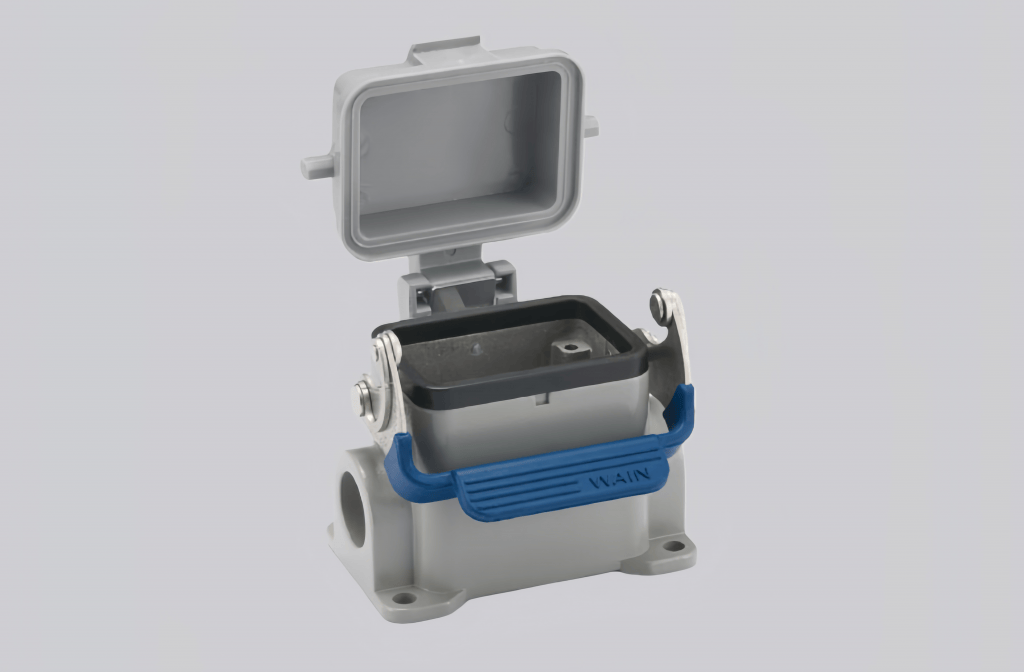

The H6B-SF-1L/SC-MCV-2M25 is tailored for industrial setups that require multiple large-diameter cable connections within a single connector housing. Its dual M25 side-entry configuration supports efficient cable distribution and reduces mechanical strain on wiring, making it suitable for complex control and power transmission layouts. The single locking design ensures secure engagement and stable performance during operation.
The enclosure is produced from die-cast aluminum, providing high structural strength for use in harsh industrial conditions. A powder-coated surface in RAL 7037 field gray enhances durability by resisting corrosion, abrasion, and environmental exposure. Integrated sealing elements assist in maintaining internal protection against dust and moisture.
The metal elastic interlocking interface, combined with stainless steel and TPR materials, contributes to long-term mechanical reliability and operational safety. Widely applied in automation equipment, control cabinets, and industrial machinery, the H6B-SF-1L/SC-MCV-2M25 offers robust construction, organized cable management, and dependable performance in demanding connector applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
