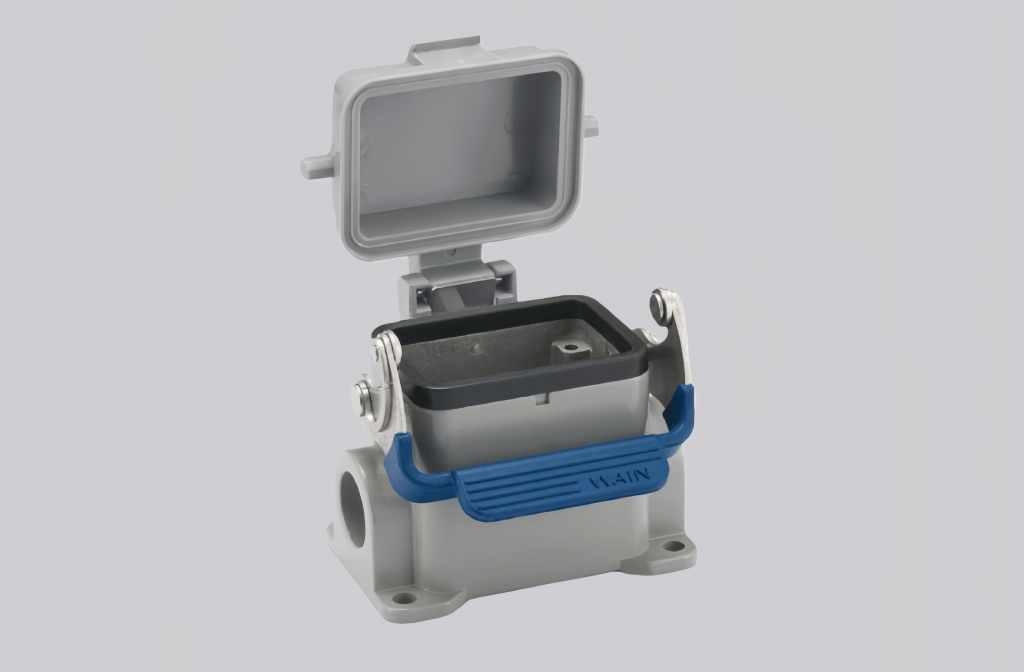

The H6B-SF-1L/SC-MCV-2M20 connector housing is designed to support industrial installations that require dual cable routing with added mechanical protection. Its side outlet configuration with two M20 entries allows efficient separation of incoming cables, helping maintain orderly wiring and reducing stress on connections. The single locking mechanism ensures secure engagement and stable performance in dynamic operating conditions.
The enclosure is manufactured from durable die-cast aluminum, providing high mechanical strength while remaining suitable for compact system layouts. A powder-coated finish in RAL 7037 field gray enhances resistance to corrosion, abrasion, and environmental influences commonly found in industrial sites. Integrated sealing elements contribute to reliable protection against dust and moisture, supporting long-term operational stability.
The elastic metal interlocking design, combined with stainless steel and TPR components, delivers dependable structural integrity and service reliability. Well suited for automation systems, control cabinets, and industrial machinery, the H6B-SF-1L/SC-MCV-2M20 offers flexible cable management, robust enclosure protection, and consistent performance for demanding connectivity applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M20 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
