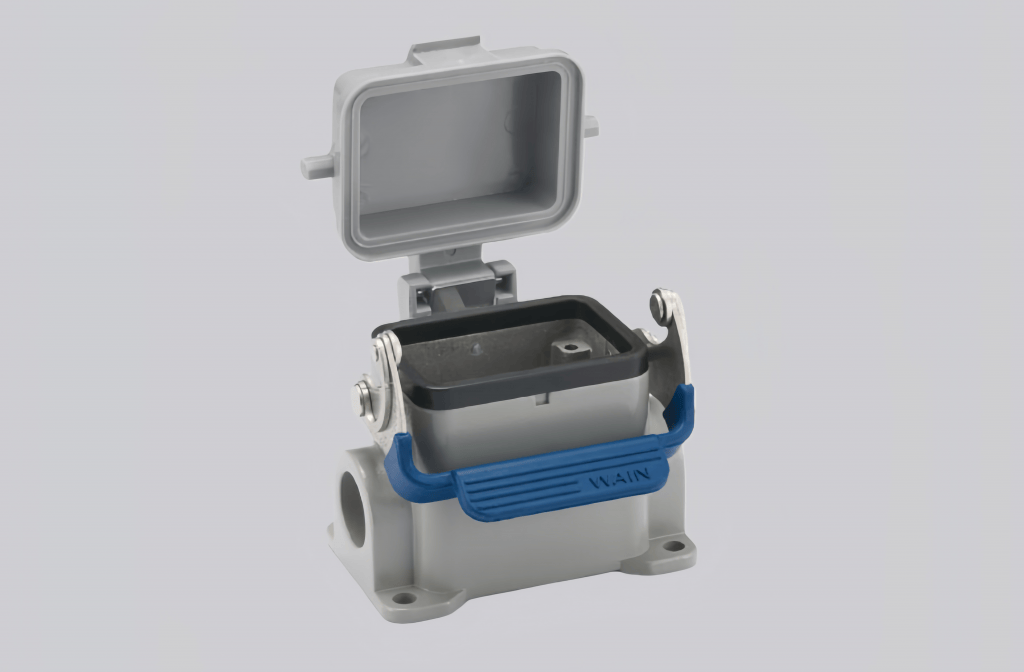

The H6B-SF-1L/SC-CV-PG16 is designed for industrial installations that require precise cable guidance and stable connector housing performance. Its side-entry configuration with a PG16 interface supports neat cable arrangement and simplifies assembly in confined spaces. The single locking system maintains secure engagement and reliable operation under continuous mechanical load.
Featuring a die-cast aluminum enclosure, the housing provides a solid and dependable structure for harsh working conditions. The powder-coated RAL 7037 field gray surface enhances resistance to corrosion and surface wear, making it suitable for long-term industrial use. Integrated sealing elements help shield internal connections from dust and moisture intrusion.
The metal elastic interlocking design, together with stainless steel and TPR components, ensures durability and consistent mechanical performance. Commonly applied in automation equipment, electrical cabinets, and machinery systems, the H6B-SF-1L/SC-CV-PG16 offers a balanced combination of structural strength, installation efficiency, and reliable protection.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG16 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
