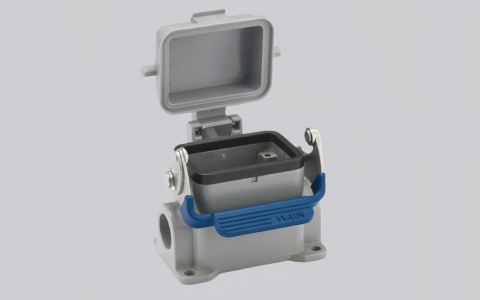

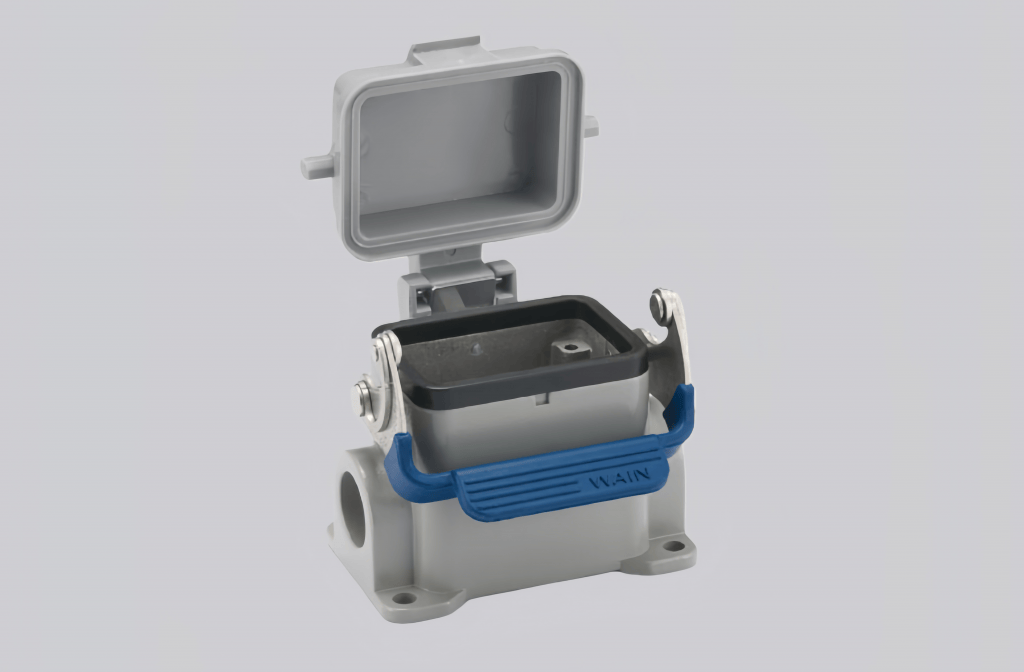

The H6B-SF-1L/SC-CV-M25 is a heavy-duty connector housing designed to provide secure and reliable electrical connections in harsh industrial environments. It features a single locking system that ensures stable mating and resistance to vibration, making it suitable for continuous operation in automation and machinery applications. The side outlet structure allows for practical cable routing and efficient use of installation space.
Constructed from high-quality die-cast aluminum, the housing is finished with a durable powder coating in RAL 7037 field gray, offering excellent protection against corrosion, mechanical impact, and environmental influences. The M25 cable entry, together with integrated NBR sealing, effectively prevents the ingress of dust and moisture, ensuring dependable performance and long service life.
The metal elastic interlocking mechanism, combined with stainless steel and TPR components, provides enhanced mechanical strength and long-term durability. Designed for easy assembly and robust protection, the H6B-SF-1L/SC-CV-M25 is an ideal choice for industrial control systems, automation lines, and other heavy-duty connectivity applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
