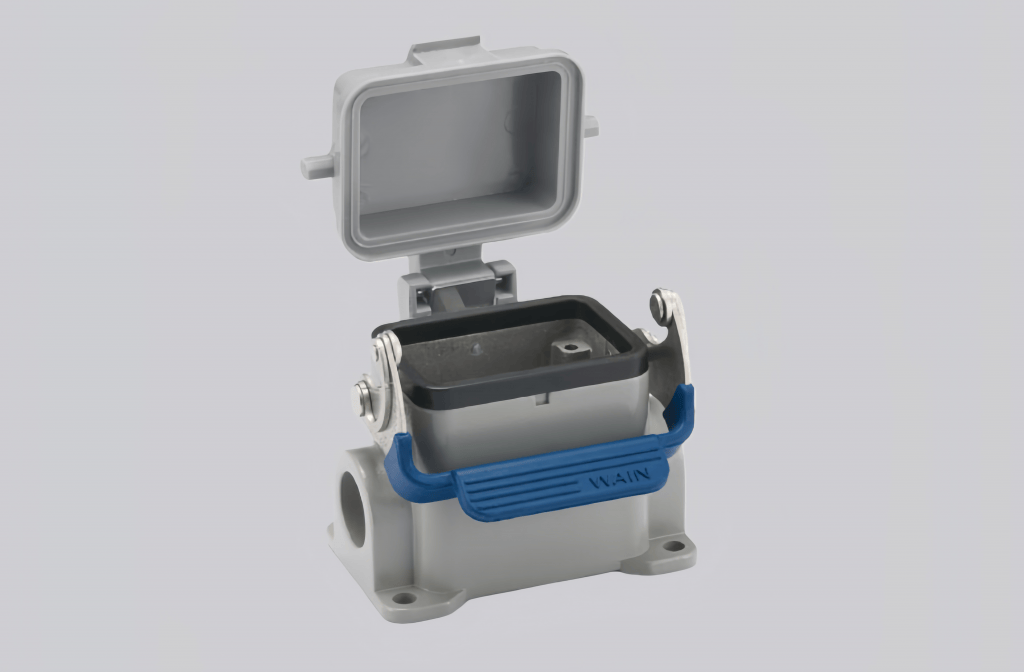

The H6B-SF-1L/SC-CV-M20 is a heavy-duty connector housing designed to deliver secure and stable electrical connections in demanding industrial applications. It features a single locking system that ensures reliable mating and resistance to vibration, making it suitable for continuous operation in machinery and automation equipment. The side outlet structure supports practical cable routing and efficient space utilization.
Made from high-quality die-cast aluminum, the housing is finished with a durable powder coating in RAL 7037 field gray, providing strong protection against corrosion, impact, and harsh environmental conditions. The M20 cable entry, combined with integrated NBR sealing, effectively prevents the ingress of dust and moisture, ensuring dependable performance and extended service life.
The metal elastic interlocking mechanism, together with stainless steel and TPR components, enhances mechanical strength and long-term durability. Designed for easy installation and reliable protection, the H6B-SF-1L/SC-CV-M20 is an ideal solution for industrial control systems, automation lines, and other heavy-duty connectivity requirements.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M20 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ to +125℃ |
| Protection rating | IP65 |
