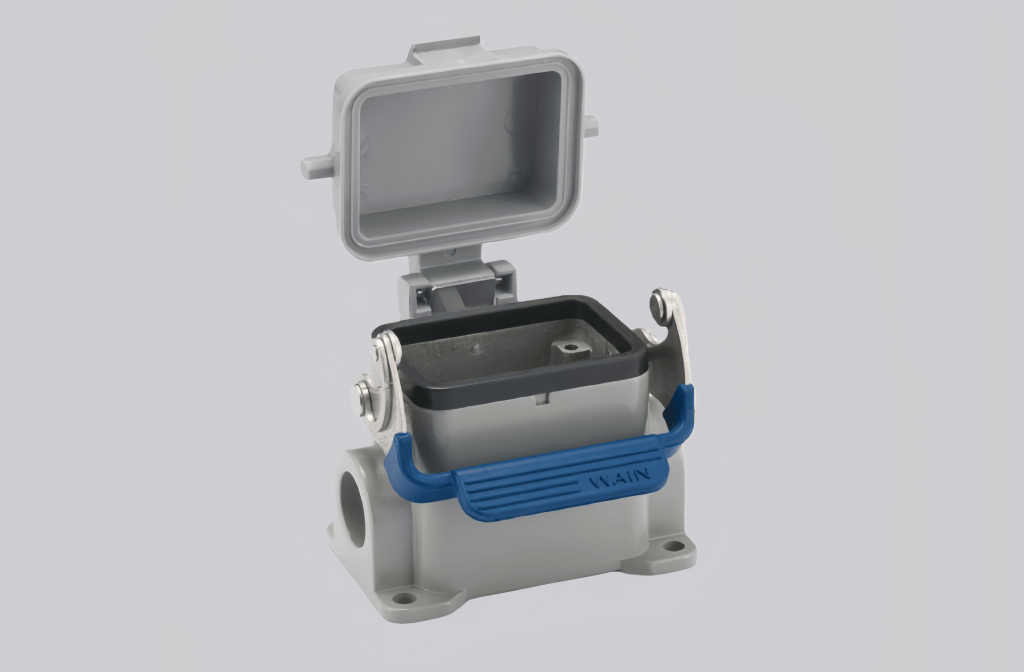

The H6B-SF-1L/SC-CV-2PG16 is designed for industrial applications that require multiple cable entries within a single compact connector housing. The dual PG16 side outlets enable efficient separation and routing of cables, supporting cleaner layouts and improved organization in control and automation systems. A single locking structure ensures secure coupling and dependable mechanical retention.
The housing is manufactured from die-cast aluminum, providing a strong and stable enclosure suitable for demanding operating environments. Its powder-coated finish in RAL 7037 field gray offers reliable protection against corrosion, abrasion, and external influences. Precision-fitted sealing components help maintain internal integrity by limiting dust and moisture ingress.
An elastic metal interlocking interface, reinforced with stainless steel and TPR elements, contributes to long-term durability and operational reliability. Widely suited for industrial machinery, control panels, and automation equipment, the H6B-SF-1L/SC-CV-2PG16 delivers flexible cable management, robust housing protection, and consistent performance in heavy-duty applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG16 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
