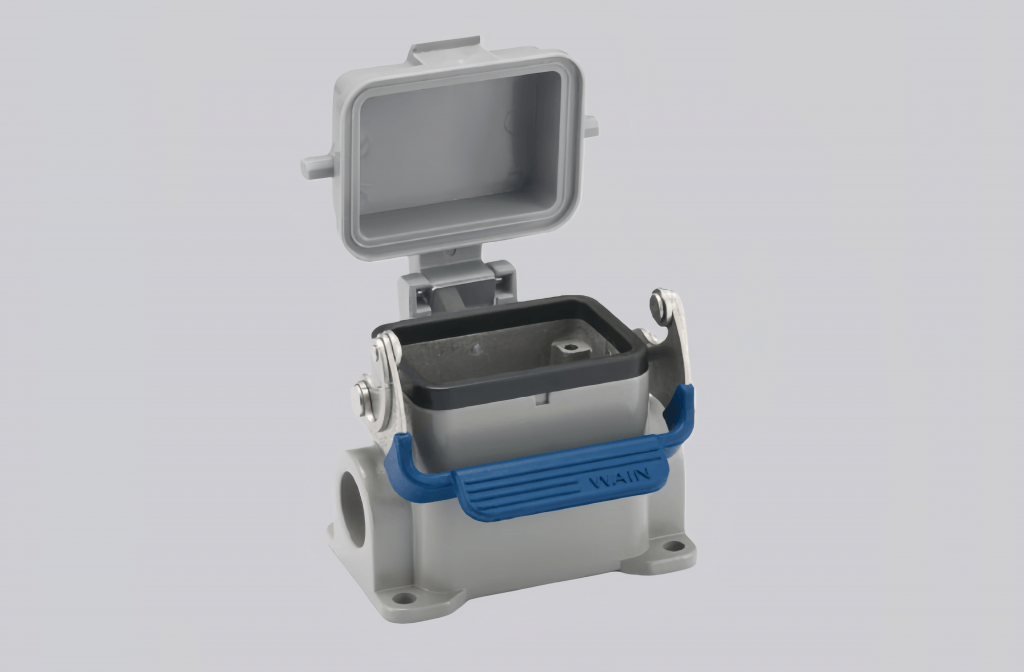

The H6B-SF-1L/SC-CV-2M25 is engineered to meet the demands of complex wiring systems requiring secure and orderly cable entry. Its dual M25 side outlets support multiple cable connections while maintaining a compact housing profile. The single-lock structure provides consistent contact stability and reliable mechanical retention during operation.
Built with a rigid die-cast aluminum body, the housing delivers excellent structural strength for use in industrial environments. The powder-coated finish in RAL 7037 field gray improves resistance to wear, corrosion, and environmental stress. Carefully integrated sealing components help protect internal connections from dust and moisture, supporting dependable performance over time.
The elastic metal interlocking interface, combined with stainless steel and TPR materials, contributes to long-term durability and operational safety. Ideal for automation systems, control units, and industrial equipment, the H6B-SF-1L/SC-CV-2M25 offers efficient cable management, robust protection, and reliable functionality in demanding applications.

Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
