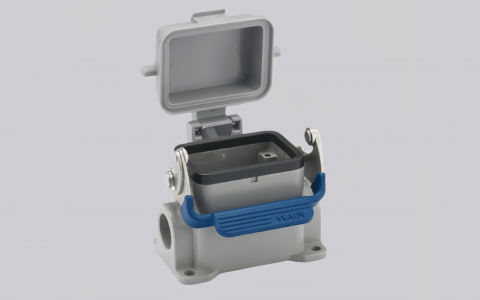

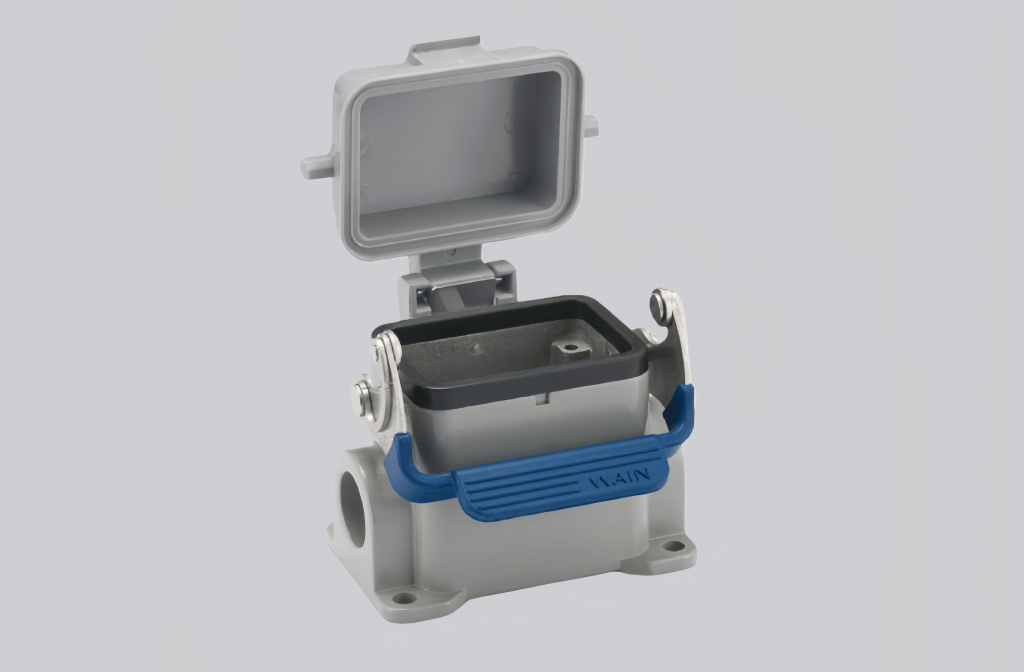

The H6B-SF-1L/SC-CV-2M20 is a heavy-duty connector housing developed for reliable electrical connections in demanding industrial environments. It is equipped with a single locking mechanism that ensures secure mating and stable performance under vibration and mechanical stress. The side outlet design with dual M20 cable entries supports flexible wiring and efficient cable organization.
Manufactured from robust die-cast aluminum, the housing is protected by a durable powder-coated finish in RAL 7037 field gray, offering excellent resistance to corrosion, impact, and harsh operating conditions. Integrated NBR sealing elements provide effective protection against dust and moisture, helping to maintain consistent performance and long service life.
The metal elastic interlocking structure, combined with stainless steel and TPR components, enhances overall mechanical strength and reliability. Suitable for automation equipment, industrial machinery, and control cabinets, the H6B-SF-1L/SC-CV-2M20 delivers dependable protection, easy installation, and long-term stability for industrial connectivity applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M20 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40°C to +125°C |
| Protection rating | IP65 |
