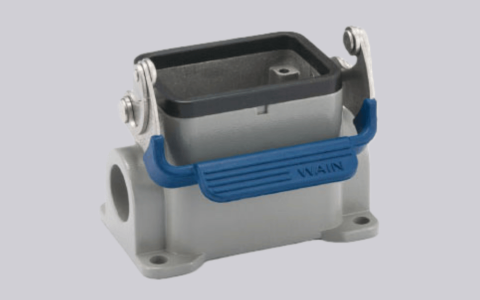

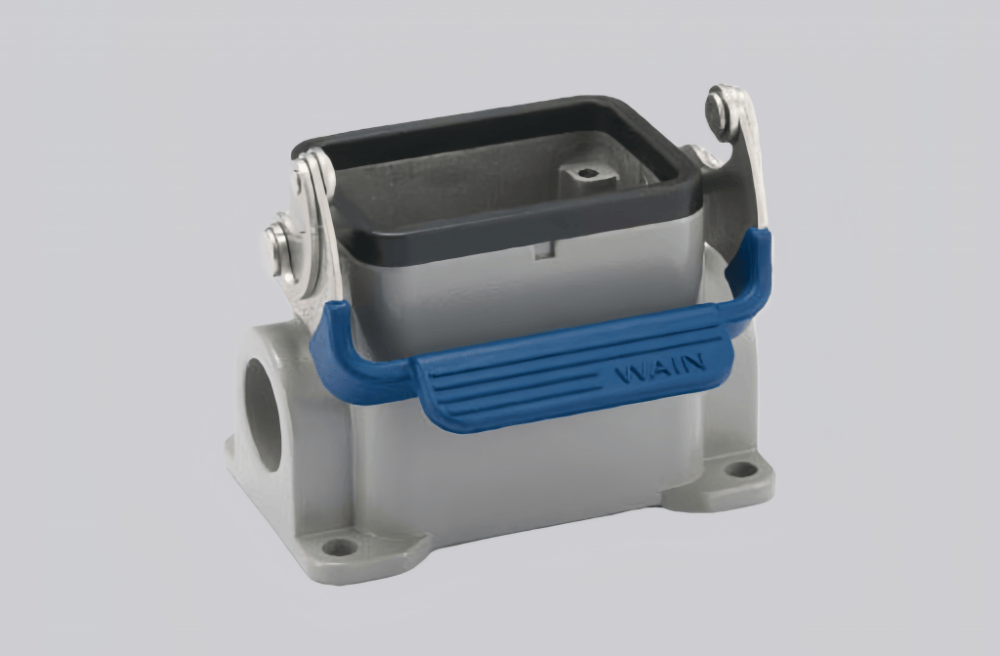

The H6B-SF-1L/SC-2PG16 is a heavy-duty connector housing engineered to provide secure and reliable electrical connections in demanding industrial environments. It is equipped with a single locking mechanism that ensures stable mating and prevents accidental disconnection during operation. The side cable outlet design with dual PG16 entries allows for efficient cable management and flexible installation options.
Constructed from high-quality die-cast aluminum, the housing features a durable powder-coated surface in RAL 7037 field gray, offering excellent resistance to corrosion, mechanical impact, and harsh operating conditions. NBR sealing elements are integrated to protect against dust and moisture, helping to maintain consistent performance and extended service life.
The metal elastic interlocking system, together with stainless steel and TPR components, provides enhanced mechanical strength and long-term reliability. Ideal for use in automation systems, industrial machinery, and control cabinets, the H6B-SF-1L/SC-2PG16 combines robust protection, easy installation, and dependable connectivity for industrial applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG16 |
| Housing material | Die-casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ to +125℃ |
| Protection rating | IP65 |
