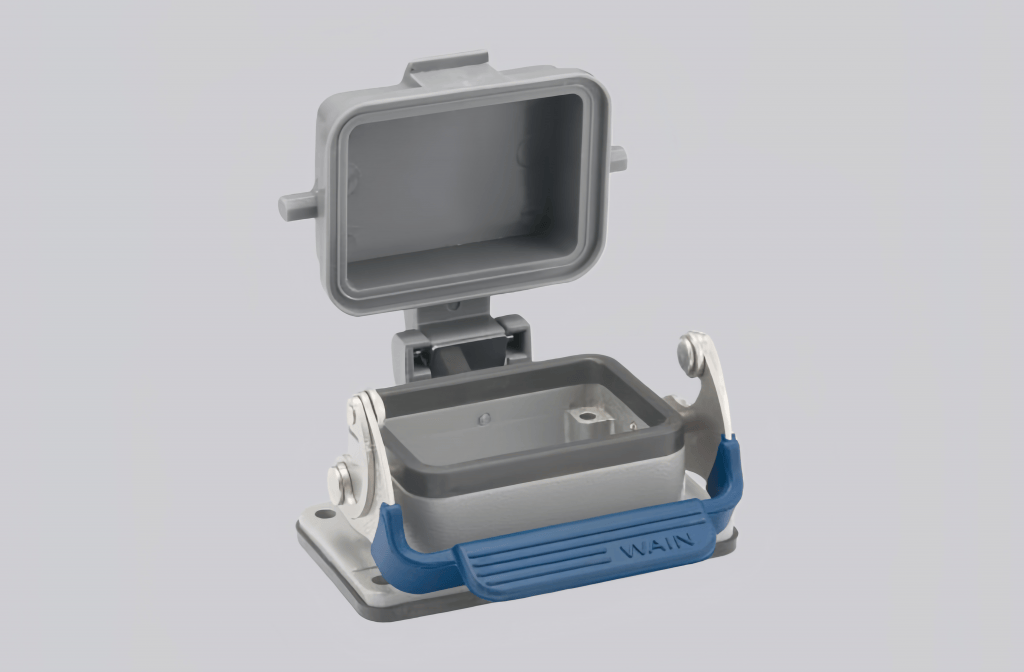

The H6B-BK-1L/SC-CV is a compact heavy-duty connector housing designed to provide reliable electrical connections in demanding industrial environments. Suitable for surface mounting applications, it offers dependable mechanical protection for automation equipment, control panels, and industrial machinery.
Constructed from high-quality metal material with a durable surface treatment, the housing delivers strong resistance to corrosion, vibration, and mechanical impact. The single-locking structure ensures quick and secure installation, while the closed version design enhances protection for internal components when not connected.
With effective sealing performance and a wide operating temperature range, the H6B-BK-1L/SC-CV operates reliably in harsh conditions such as dust, moisture, and mechanical stress. Its compact design makes it ideal for space-restricted installations, providing long service life and dependable industrial connectivity.

Technical Data
| Series | Classic regular housing |
| Specifications | 6B |
| Housing type | Unsealed cover |
| Housing overview | Plastic cap |
| Outgoing method | Bottom outlet |
| Locking type | Single lock |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ ~ +125℃ |
| Protection rating | IP65 |
