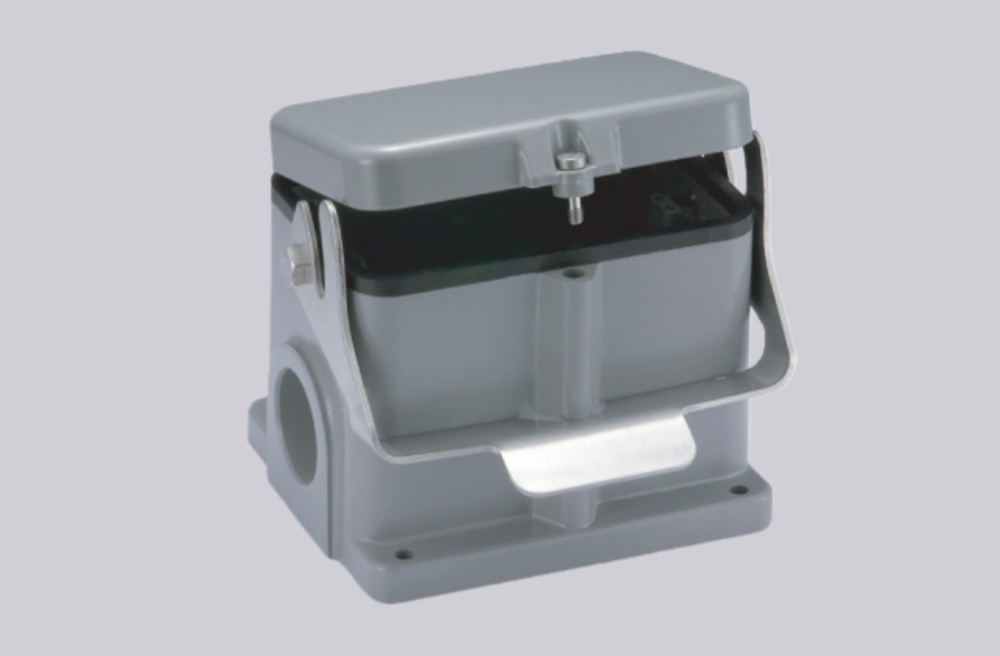

H48B-SF-1L/S-MCV-PG36 | High-Quality Rectangular Connectors

The H48B-SF-1L/S-MCV-PG36 is a heavy-duty connector housing designed to provide reliable electrical protection in demanding industrial applications. Based on the classic regular housing design, it features a sealed lower housing structure that effectively prevents the ingress of dust and moisture, ensuring stable and safe operation in harsh working environments.

The housing is manufactured from high-quality die-cast aluminum, offering excellent mechanical strength, impact resistance, and long-term durability. Its surface is finished with a robust powder coating in RAL 7037 field gray, which enhances corrosion resistance and extends service life. The single locking mechanism ensures secure mating, while the metal elastic interlocking system allows quick and efficient connection and disconnection.

Equipped with a PG36 side cable entry, the H48B-SF-1L/S-MCV-PG36 supports reliable cable management and strain relief. NBR sealing elements provide effective protection with an IP65 rating and stable performance across a wide temperature range, making this housing ideal for machinery, automation systems, and power distribution equipment where safety and reliability are critical.

Technical Data
