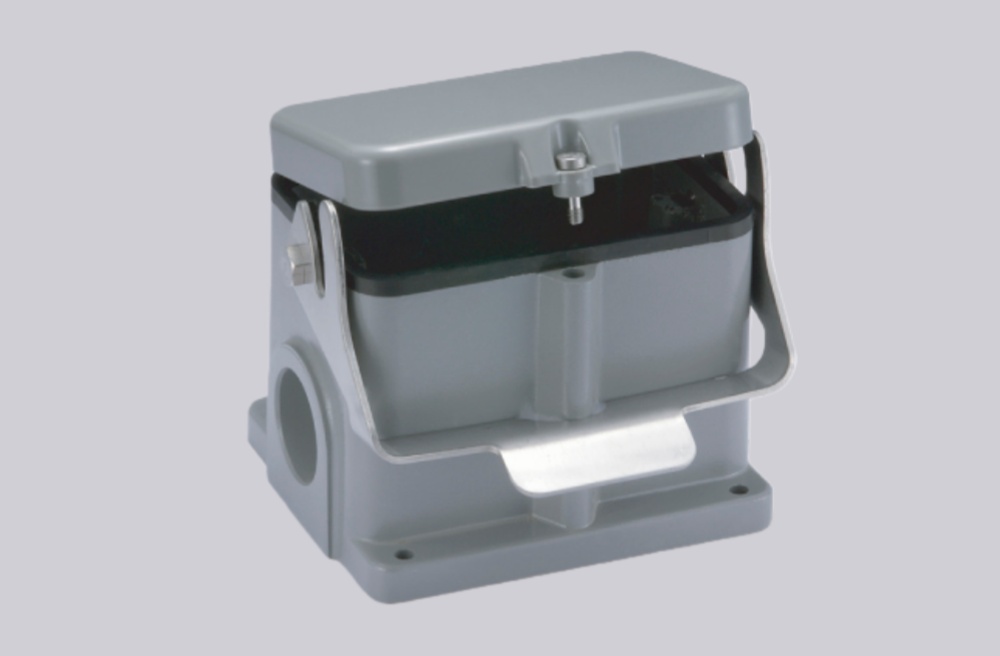

H48B-SF-1L/S-MCV-2PG29 | High-Quality Rectangular Connectors

The H48B-SF-1L/S-MCV-2PG29 is a heavy-duty connector housing engineered for dependable performance in demanding industrial environments. Designed in the classic regular housing series, it features a sealed lower housing structure that effectively protects internal components from dust, moisture, and external contaminants, ensuring stable and safe operation under harsh conditions.

Constructed from high-quality die-cast aluminum, the housing provides excellent mechanical strength, impact resistance, and long-term durability. The surface is treated with a durable powder coating in RAL 7037 field gray, offering enhanced corrosion resistance and an extended service life. A single locking mechanism ensures secure and stable connections, while the metal elastic interlocking system allows for quick, efficient mating and disconnection during installation and maintenance.

Equipped with dual PG29 side cable entries, the H48B-SF-1L/S-MCV-2PG29 enables flexible cable routing and reliable strain relief. NBR seals deliver effective sealing performance with an IP65 protection rating across a wide temperature range, making this housing well suited for machinery, automation systems, and power transmission applications where reliability and safety are essential.

Technical Data
