H48B-SF-1L/S-MCV-2M40 | High-Quality Rectangular Connectors

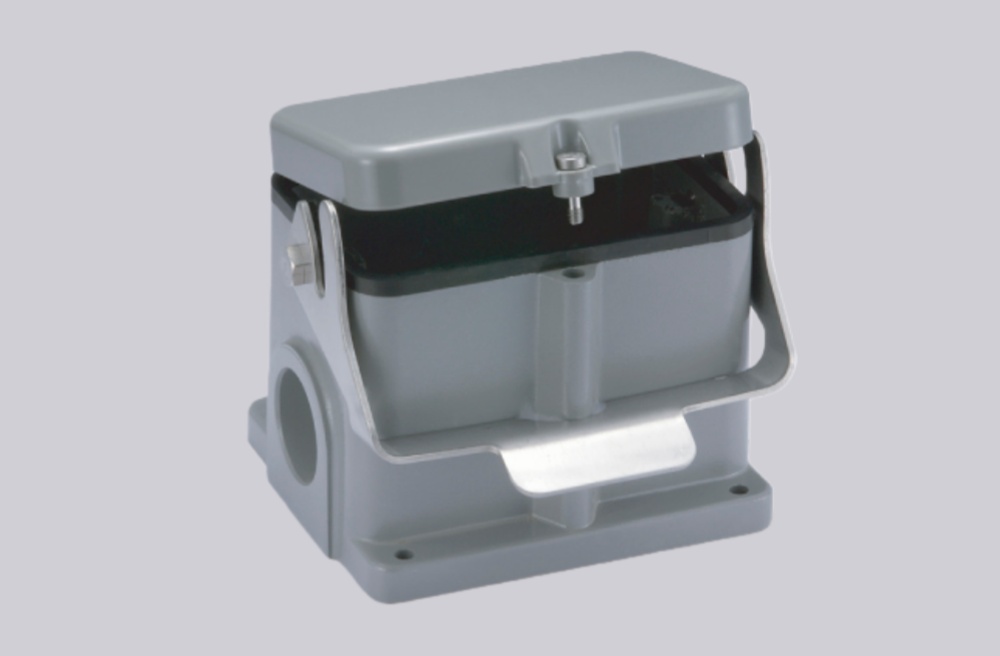

The H48B-SF-1L/S-MCV-2M40 is a heavy-duty connector housing engineered for reliable operation in demanding industrial environments. Part of the classic regular housing series, it features a sealed lower housing that effectively safeguards internal components from dust, moisture, and external contaminants, ensuring stable performance even under harsh conditions.

Constructed from premium die-cast aluminum, the housing offers excellent mechanical strength, impact resistance, and long-term durability. Its surface is coated with a powder finish in RAL 7037 field gray for enhanced corrosion protection. The single locking mechanism guarantees a secure connection, while the metal elastic interlocking system allows fast and efficient mating and disconnection.

Equipped with dual M40 side cable entries, the H48B-SF-1L/S-MCV-2M40 allows flexible cable management and reliable strain relief. NBR seals provide effective protection with an IP65 rating across a wide temperature range, making this housing suitable for machinery, automation systems, and power distribution applications where safety, durability, and performance are essential.

Technical Data
