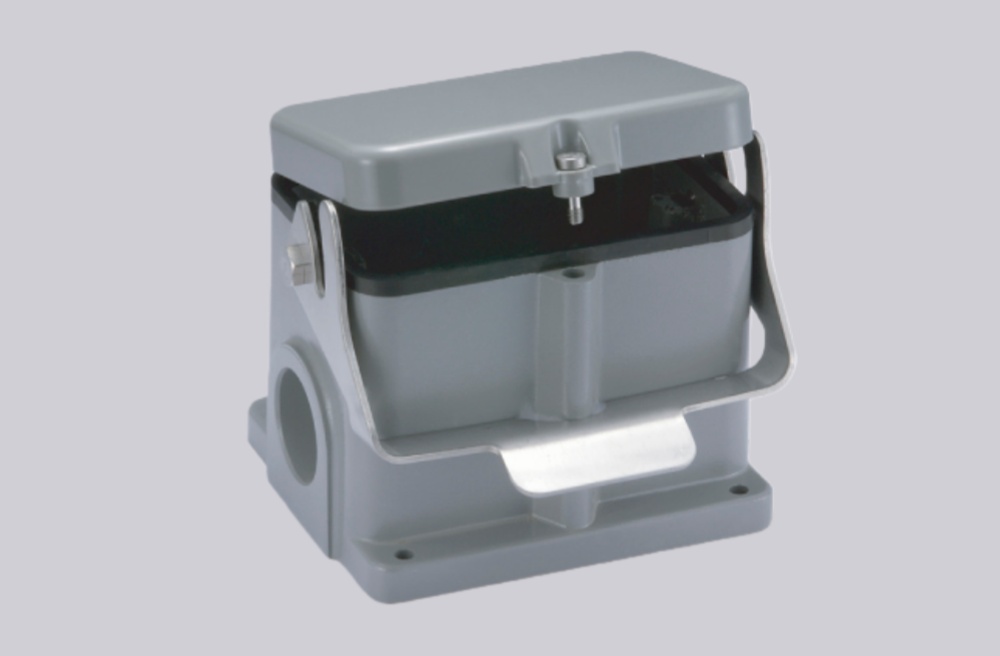

The H48B-SF-1L/S-CV-PG36 is part of the classic regular housing series, designed to provide reliable protection in industrial environments. It features a sealed lower housing with a robust metal cap, effectively shielding internal components from dust, moisture, and mechanical stress. The side outlet design and single PG36 threaded connection with a single-lock mechanism allow for secure and convenient installation.
Made from high-quality die-cast aluminum with a powder-coated finish in RAL 7037 (field gray), the housing offers excellent corrosion resistance and long-term durability. The metal elastic interlocking connection adds structural stability, while stainless steel components and NBR seals enhance resistance to wear, vibration, and temperature changes, supporting an operating range from -40℃ to +125℃.
With a UL94 V0 flame retardant rating and IP65 protection, this housing ensures safety and reliability in demanding industrial applications. Its PG36 threaded outlet provides flexible connectivity, making it ideal for complex wiring systems requiring both durability and efficiency.
Technical Data
| Series | Classic regular housing |
| Specifications | 48B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG36 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
