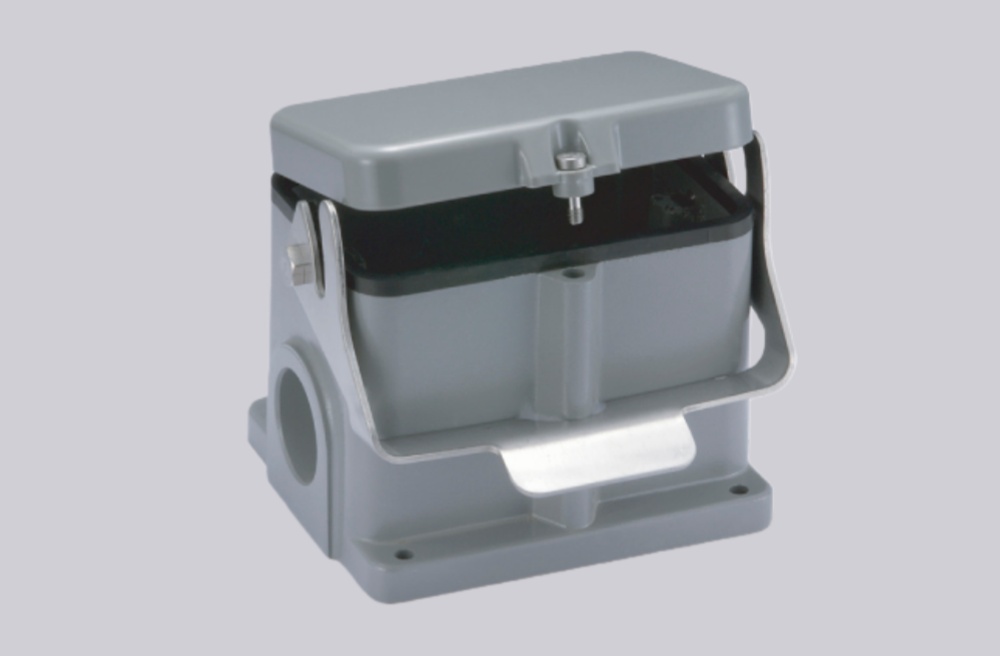

H48B-SF-1L/S-CV-PG29 | High-Quality Rectangular Connectors

The H48B-SF-1L/S-CV-PG29 is part of the classic regular housing series, designed to provide reliable protection for industrial electrical systems. It features a sealed lower housing with a sturdy metal cap, effectively shielding internal components from dust, moisture, and mechanical impact. The side outlet design with a PG29 threaded connection and a single-lock mechanism allows for secure and convenient installation.

Constructed from high-quality die-cast aluminum with a powder-coated finish in RAL 7037 (field gray), the housing offers excellent corrosion resistance and long-lasting durability. The metal elastic interlocking connection enhances structural stability, while stainless steel components and NBR seals improve resistance to wear, vibration, and temperature fluctuations, supporting operation in a wide temperature range from -40℃ to +125℃.

With a UL94 V0 flame retardant rating and IP65 protection, this housing ensures safety and reliability in demanding industrial environments. Its PG29 threaded outlet provides flexible wiring options, making it ideal for complex electrical systems requiring both efficiency and durability.

Technical Data
