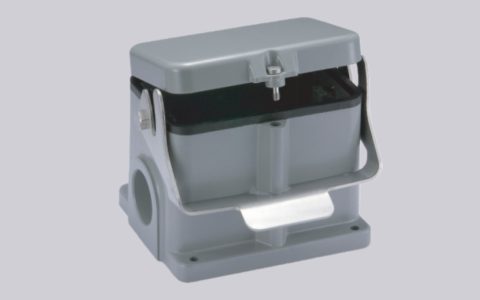

The H48B-SF-1L/S-CV-M40 is a classic regular housing designed for industrial environments requiring reliable protection. Its sealed lower housing combined with a sturdy metal cap shields internal components from dust, moisture, and physical impacts, ensuring consistent performance under challenging conditions.
Constructed from die-cast aluminum with a powder-coated RAL 7037 (field gray) finish, the housing provides long-lasting durability and corrosion resistance. The stainless steel elements and NBR seals enhance strength and vibration tolerance, while the metal elastic interlocking system ensures secure assembly. A single M40 threaded outlet allows flexible cable routing and simplified installation.
Rated to IP65 standards and UL94 V0 flame retardancy, this housing guarantees safety and reliability in demanding industrial applications. Its robust design, versatility, and ease of installation make it suitable for machinery and electrical systems requiring dependable protection and efficient wiring solutions.
Technical Data
| Series | Classic regular housing |
| Specifications | 48B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
