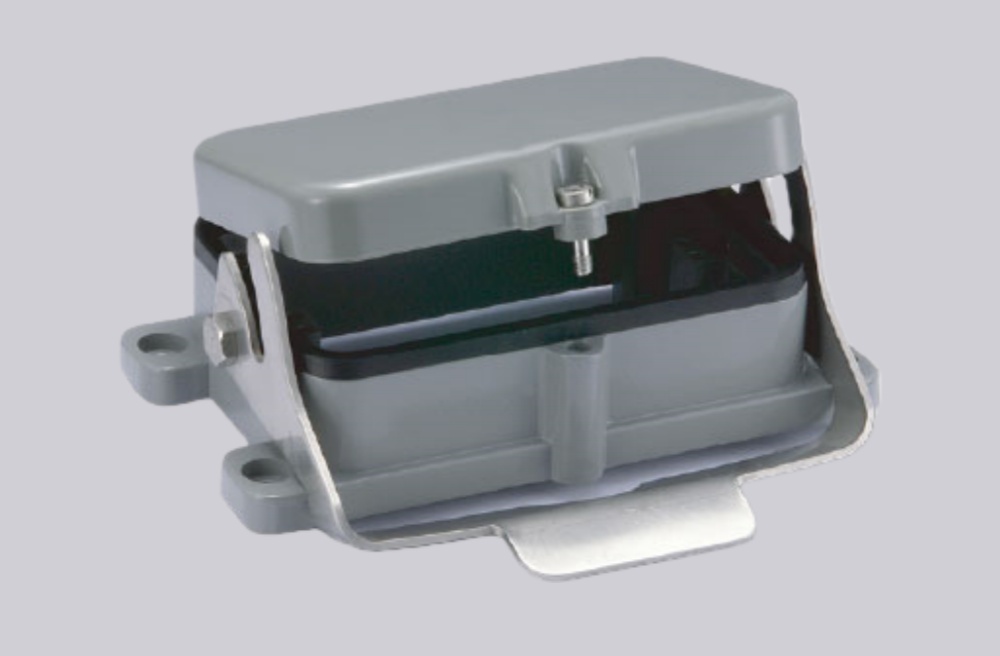

The H48B-SF-1L/S-CV-2PG29 is part of the classic regular housing series, designed to deliver reliable protection in industrial applications. Featuring a sealed lower housing with a durable metal cap, it safeguards internal components from dust, moisture, and mechanical stress. The side outlet design with dual PG29 threaded connections and a single-lock mechanism ensures secure and convenient installation.
Crafted from high-quality die-cast aluminum with a powder-coated finish in RAL 7037 (field gray), this housing offers excellent corrosion resistance and long-term durability. The metal elastic interlocking connection enhances structural stability, while stainless steel components and NBR seals improve resistance to wear, vibration, and temperature fluctuations, supporting operation from -40℃ to +125℃.
Certified with a UL94 V0 flame retardant rating and IP65 protection, the housing guarantees safety and reliability in harsh industrial environments. Its dual PG29 outlets provide flexible wiring options, making it suitable for complex electrical systems requiring both efficiency and durability.

Technical Data
| Series | Classic regular housing |
| Specifications | 48B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG29 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
