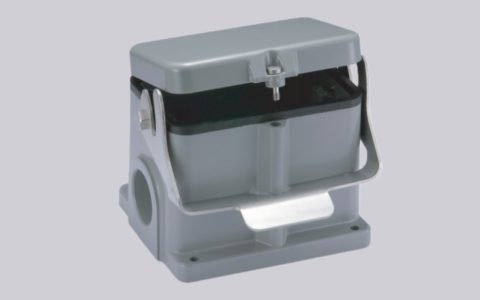

The H48B-SF-1L/S-CV-2M40 belongs to the classic regular housing series, engineered for industrial applications requiring robust protection. Its sealed lower housing and sturdy metal cap provide excellent resistance against dust, moisture, and mechanical impacts, ensuring the internal components remain secure under demanding conditions.
The housing is made from die-cast aluminum with a RAL 7037 (field gray) powder-coated finish, offering corrosion resistance and a long service life. Stainless steel components and NBR seals enhance durability and vibration resistance, while the metal elastic interlocking design ensures stable assembly. The dual M40 threaded outlets allow flexible cable routing for various installation needs.
Designed to meet IP65 protection standards and UL94 V0 flame retardancy, this housing guarantees safety and reliability in harsh environments. Its combination of strength, adaptability, and ease of installation makes it ideal for complex wiring systems and industrial machinery requiring dependable performance.
Technical Data
| Series | Classic regular housing |
| Specifications | 48B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
