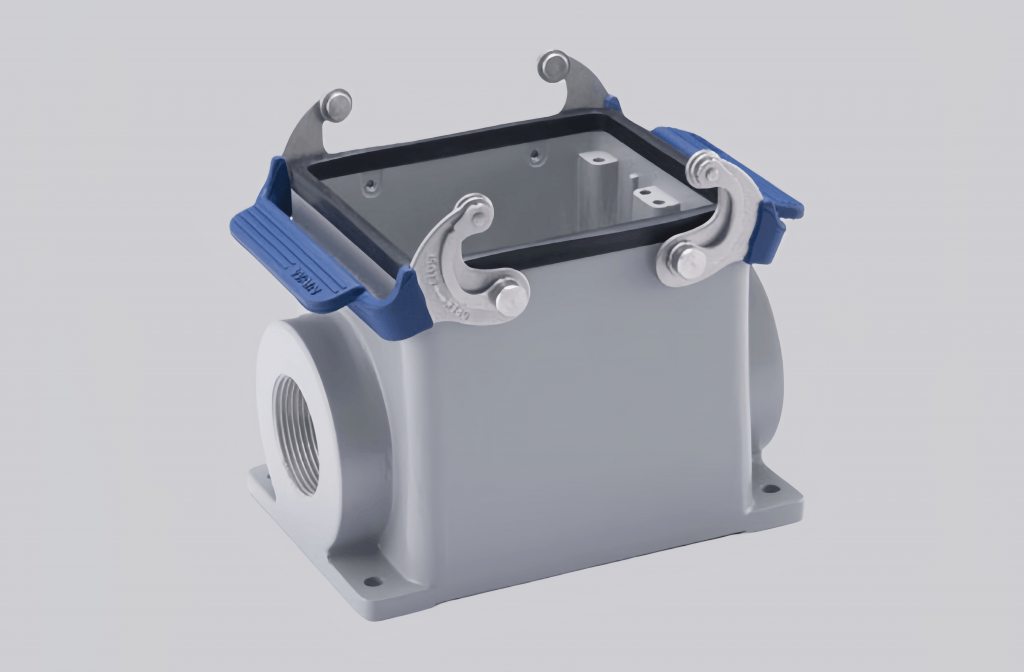

The H32B-SF-2L/SC-2PG42 is a heavy-duty connector housing designed for reliable and stable performance in industrial environments. As part of the Classic regular housing series, it features a sealed structure that effectively protects internal connections from dust, moisture, and mechanical stress, ensuring safe and consistent electrical operation.
Constructed from high-quality die-cast aluminum, the housing is finished with a durable powder coating in RAL 7037 gray, providing excellent corrosion resistance and mechanical strength. The side outlet design is equipped with two PG42 threaded entries, allowing secure fixation for dual cables and flexible wiring arrangements. A robust locking system combined with metal elastic interlocking ensures quick installation and strong vibration resistance.
With excellent sealing performance and reinforced mechanical design, the H32B-SF-2L/SC-2PG42 is ideal for industrial automation, heavy machinery, and control cabinet applications. It delivers reliable protection, convenient installation, and long service life under demanding working conditions.

Technical Data
| Series | Classic regular housing |
| Specifications | 32B |
| Housing type | Sealed lower housing |
| Locking type | Dual lock |
| Thread | PG42 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
