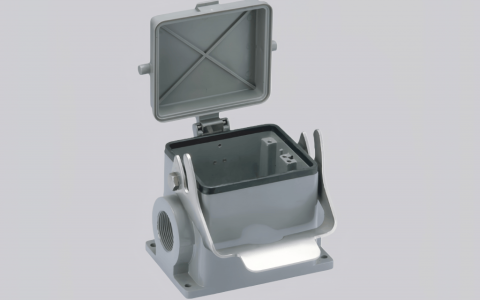

The H32B-SF-1L/S-MCV-M40 is a premium classic regular housing designed for demanding industrial and outdoor applications. Featuring a sealed lower housing with a robust metal cap, it provides reliable protection against dust, moisture, and mechanical impacts, ensuring the safety and longevity of internal components. Its bottom outlet with M40 threading allows flexible cable routing, while the dual lock system guarantees secure and stable assembly during operation.
Constructed from high-quality die-cast aluminum, the housing delivers superior strength and corrosion resistance. The surface is treated with a powder coating in RAL 7037 (field gray), providing a professional and durable finish. The metal elastic interlocking connection enhances structural integrity, while stainless steel and TPR components, together with NBR seals, provide excellent flame-retardant performance in accordance with UL94 standards.
Ideal for industrial automation, control panels, and harsh outdoor environments, the H32B-SF-1L/S-MCV-M40 combines durability, practicality, and safety, providing reliable protection for sensitive equipment.
Technical Data
| Series | Classic regular housing |
| Specifications | 32B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
