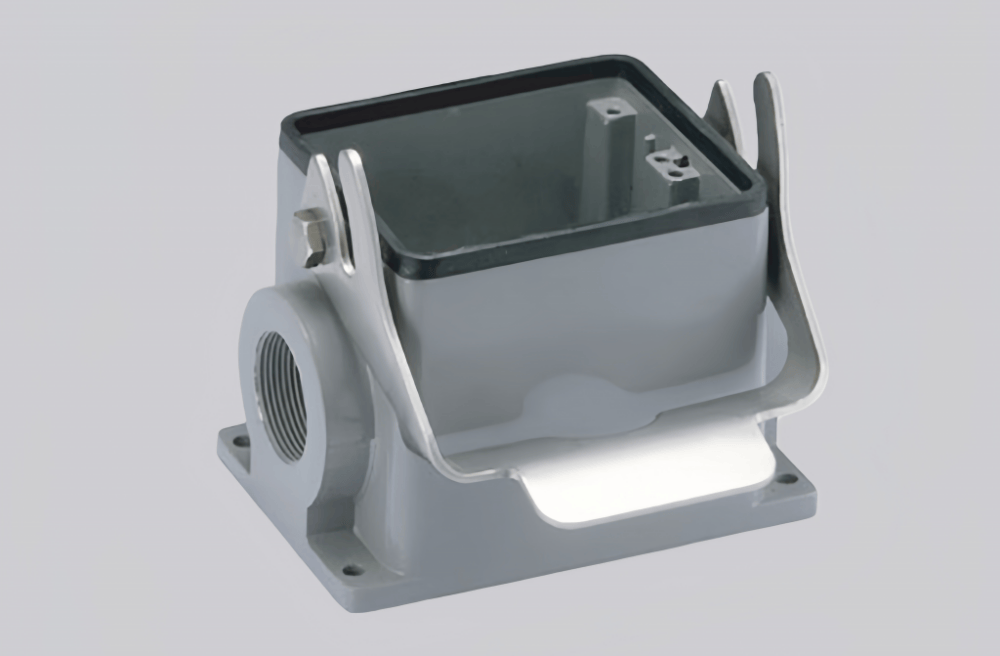

The H32B-SF-1L/S-M40 is a durable classic regular housing engineered for demanding industrial and outdoor environments. Featuring a sealed lower housing with a sturdy metal cap, it provides excellent protection against dust, moisture, and mechanical stress, ensuring reliable performance and longevity of internal components. Its bottom outlet design with M40 threading allows flexible cable routing, while the dual lock system guarantees secure and stable assembly.
Crafted from high-quality die-cast aluminum, the housing offers superior strength and corrosion resistance. The surface is finished with a powder coating in RAL 7037 (field gray), delivering a long-lasting, professional appearance. Its metal elastic interlocking connection enhances structural stability, while stainless steel and TPR components, together with NBR seals, provide outstanding flame-retardant performance as per UL94 standards.
Ideal for industrial automation, control panels, and outdoor installations, the H32B-SF-1L/S-M40 combines robust protection, practical design, and safety, making it a reliable solution for harsh operating conditions.
Technical Data
| Series | Classic regular housing |
| Specifications | 32B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
