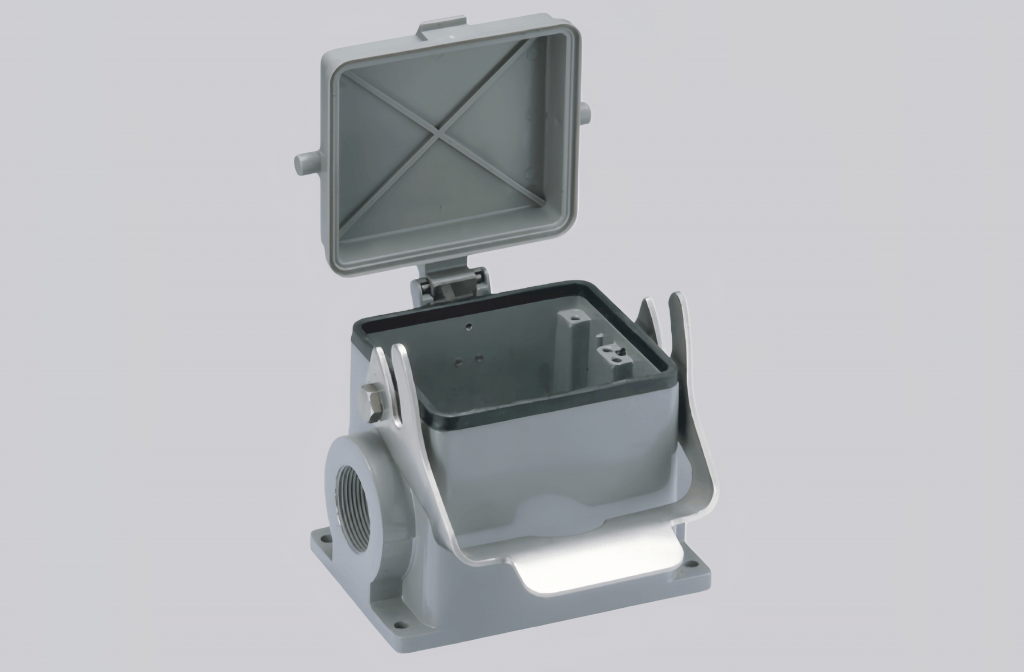

The H32B-SF-1L/S-CV-M32 is a high-quality classic regular housing designed for industrial and outdoor applications. Featuring a sealed lower housing with a robust metal cap, it provides reliable protection against dust, moisture, and mechanical impacts, ensuring the longevity and safety of internal components. Its bottom outlet with M32 threading allows flexible cable management, while the dual lock system ensures secure and stable assembly during operation.
Constructed from premium die-cast aluminum, the housing offers superior strength and corrosion resistance. The surface is finished with a powder coating in RAL 7037 (field gray), delivering a professional and durable appearance. Its metal elastic interlocking connection enhances structural integrity, while stainless steel and TPR components, along with NBR seals, provide excellent flame-retardant performance according to UL94 standards.
Ideal for industrial automation, control panels, and harsh outdoor environments, the H32B-SF-1L/S-CV-M32 combines durability, practicality, and safety, making it a reliable solution for protecting sensitive equipment.
Technical Data
| Series | Classic regular housing |
| Specifications | 32B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
