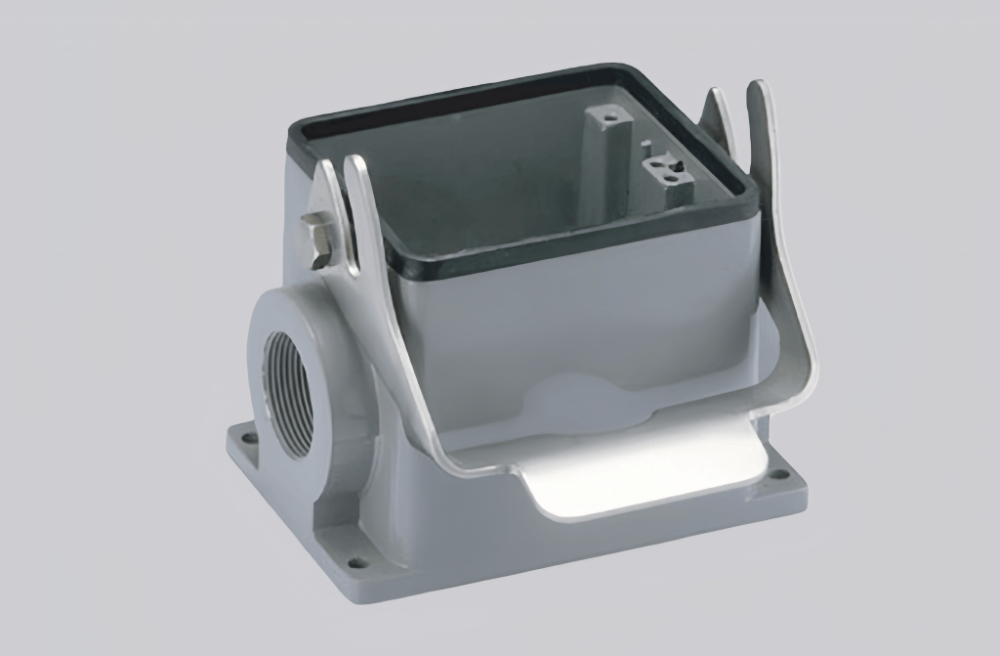

The H32B-SF-1L/S-2M40 is a premium classic regular housing designed for demanding industrial and outdoor applications. Featuring a sealed lower housing with a durable metal cap, it provides excellent protection against dust, moisture, and mechanical impacts, ensuring the longevity and reliability of internal components. Its bottom outlet design with dual M40 threads allows versatile cable management, while the dual lock mechanism ensures secure and stable assembly during operation.
Constructed from high-quality die-cast aluminum, the housing delivers superior strength and corrosion resistance. The surface is treated with a powder coating in RAL 7037 (field gray), providing a professional and long-lasting finish. Its metal elastic interlocking connection enhances structural integrity, while stainless steel and TPR components, along with NBR seals, ensure excellent flame-retardant performance according to UL94 standards.
Ideal for industrial automation, control panels, and harsh outdoor environments, the H32B-SF-1L/S-2M40 combines durability, safety, and practical design to protect sensitive equipment effectively.
Technical Data
| Series | Classic regular housing |
| Specifications | 32B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
