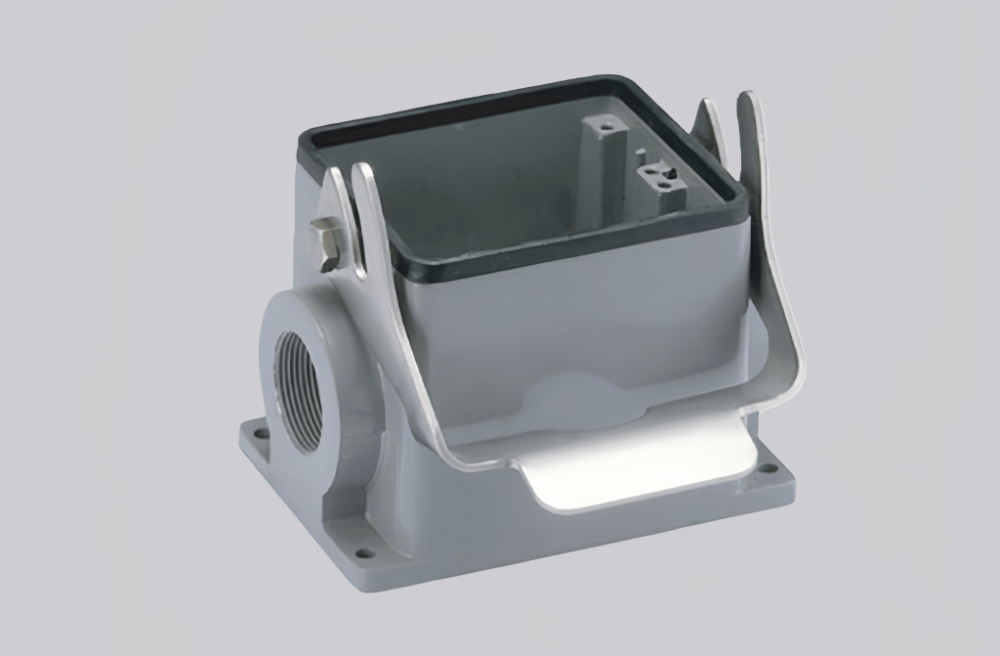

The H32B-SF-1L/S-2M32 is a premium classic regular housing designed to meet the demands of industrial applications. Featuring a sealed lower housing with a robust metal cap, it provides reliable protection against dust, moisture, and mechanical impacts, ensuring the safety and longevity of internal components. Its bottom outlet design with dual M32 threads allows flexible cable management, while the dual lock system ensures secure assembly and stability during operation.
Constructed from high-quality die-cast aluminum, the housing offers exceptional strength and corrosion resistance. The RAL 7037 (field gray) powder-coated surface ensures durability and a professional finish. Its metal elastic interlocking connection enhances structural integrity, while stainless steel and TPR components, along with NBR seals, provide excellent flame-retardant performance according to UL94 standards.
Ideal for industrial automation, control cabinets, and outdoor installations, the H32B-SF-1L/S-2M32 combines durability, safety, and practical design, delivering reliable protection in harsh operating environments.
Technical Data
| Series | Classic regular housing |
| Specifications | 32B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
