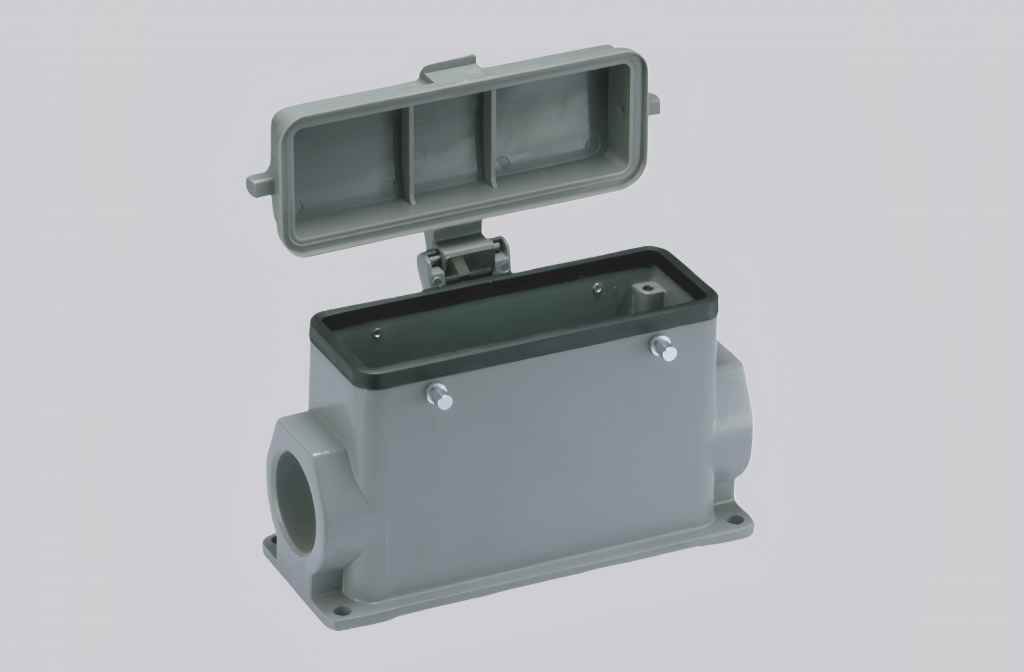

The H24B-SFH-4B-MCV-M32 is a heavy-duty connector housing engineered for reliable performance in demanding industrial environments. As part of the Classic regular housing series, it features a sealed housing structure that effectively protects internal components from dust, moisture, and mechanical stress, ensuring stable and safe electrical connections.
Constructed from high-quality die-casting aluminum, the housing is finished with a durable powder coating in RAL 7037 field gray, providing excellent corrosion resistance and mechanical strength. The side outlet design with an M32 threaded entry, combined with the MCV version, allows secure cable fixation and flexible wiring installation. A robust locking system with metal elastic interlocking ensures quick assembly and strong resistance to vibration.
With excellent sealing performance and a reinforced mechanical design, the H24B-SFH-4B-MCV-M32 is ideal for industrial automation, machinery, and control cabinet applications. It delivers dependable protection, easy installation, and long service life in harsh operating conditions.

Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
