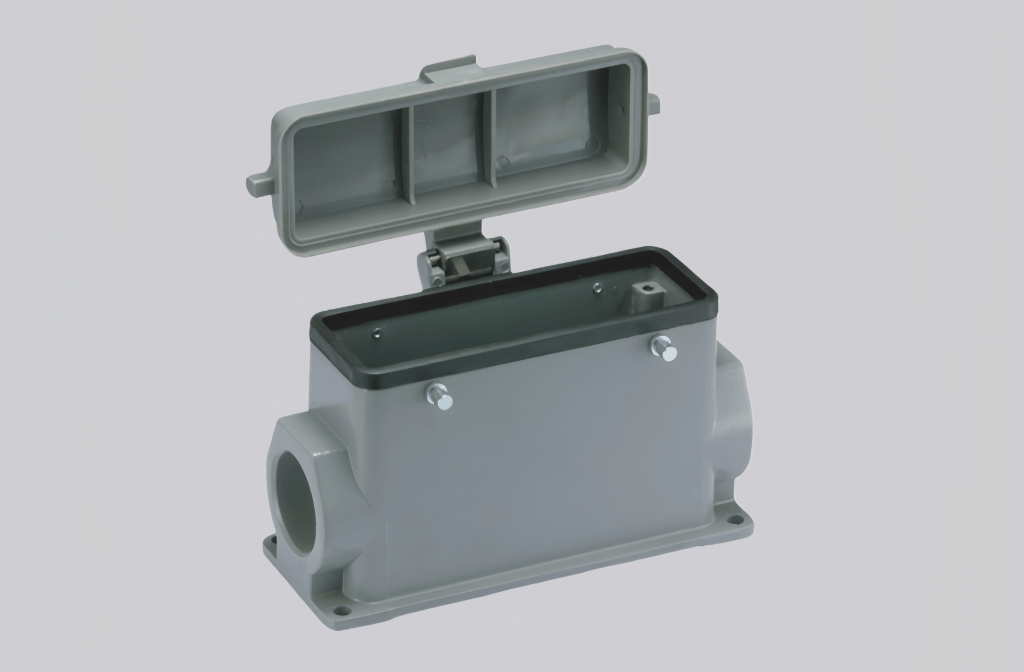

The H24B-SFH-4B-CV-2M32 is a robust heavy-duty connector housing designed for reliable and stable performance in demanding industrial environments. As part of the Classic regular housing series, it features a sealed housing structure that effectively protects internal connections from dust, moisture, and mechanical stress, ensuring safe and continuous electrical operation.
Manufactured from high-quality die-casting aluminum, the housing is finished with a durable powder-coated surface in RAL 7037 field gray, offering excellent corrosion resistance and mechanical strength. The side outlet design with dual M32 threaded cable entries, combined with the cover version (CV) structure, allows flexible dual-cable routing and secure cable fixation. A sturdy locking system with metal elastic interlocking ensures quick installation and strong vibration resistance.
With dependable sealing performance and a reinforced structural design, the H24B-SFH-4B-CV-2M32 is ideal for industrial automation, heavy machinery, and control cabinet applications. It provides reliable protection, convenient assembly, and long service life in harsh working conditions.

Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
