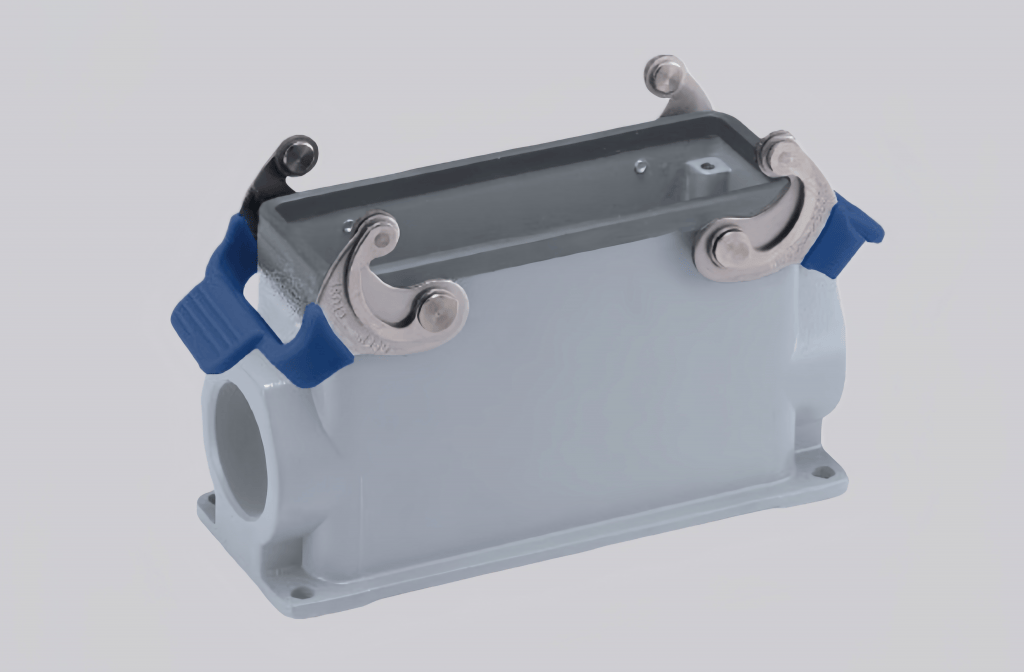

The H24B-SFH-2L/SC-2M40 is a heavy-duty rectangular connector housing designed for industrial applications requiring secure dual-cable connections and reliable performance. Built to the 24B standard, it provides robust mechanical protection and ensures long-term stability in demanding environments such as machinery, automation systems, and power distribution equipment.
This model features a sealed lower housing with two M40 threaded cable entries, offering effective strain relief and protection against dust and moisture. Its two-layer structure (2L/SC) enhances stability and simplifies installation, while the reinforced locking mechanism ensures reliable connections even under vibration or frequent mating cycles.
Manufactured from high-quality die-cast aluminum with a durable surface treatment, the H24B-SFH-2L/SC-2M40 delivers excellent mechanical strength, corrosion resistance, and reliability. It is ideal for industrial applications where dual-cable management, durability, and consistent long-term performance are essential.

Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Locking type | Dual lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
