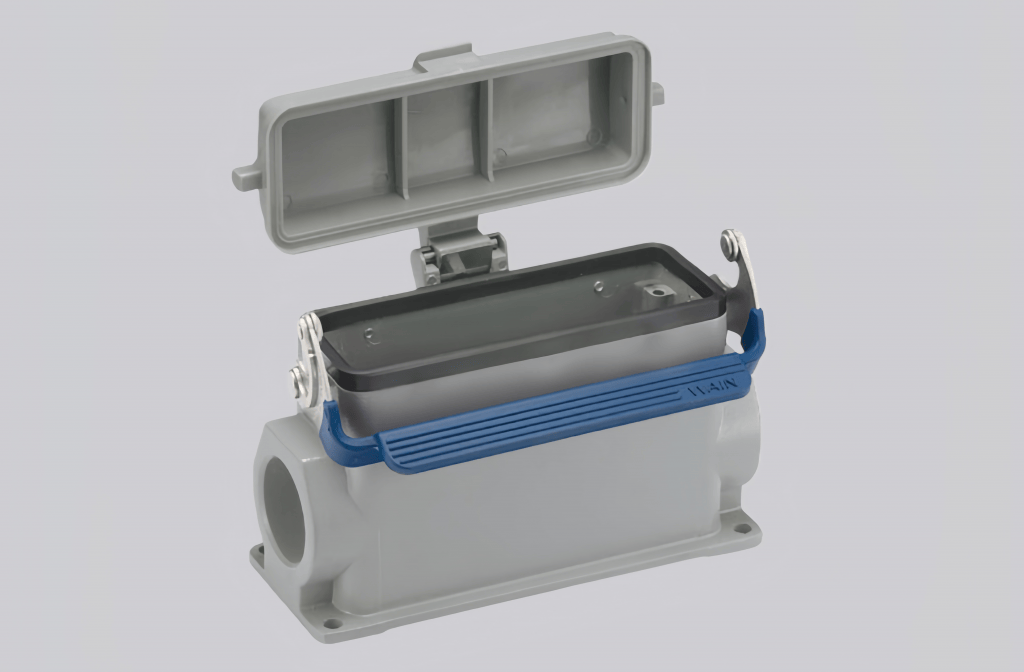

The H24B-SFH-1L/SC-CV-M32 is a sealed lower housing designed for heavy-duty industrial connector applications that require reliable protection and stable performance. The side cable outlet with a protective cover improves cable management and provides additional protection in demanding installation environments.
The housing is manufactured from high-quality die-casting aluminum, offering excellent mechanical strength, impact resistance, and corrosion resistance. Its surface is finished with powder coating in RAL 7037 field gray to enhance durability in harsh industrial conditions. The M32 threaded cable entry ensures secure cable fixation, while the single-lock mechanism enables fast and stable connector engagement.
Equipped with NBR sealing and a metal elastic interlocking system, this housing effectively protects against dust, moisture, and vibration. The H24B-SFH-1L/SC-CV-M32 is ideal for automation equipment, industrial machinery, and power distribution systems that require dependable performance and long-term reliability.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
