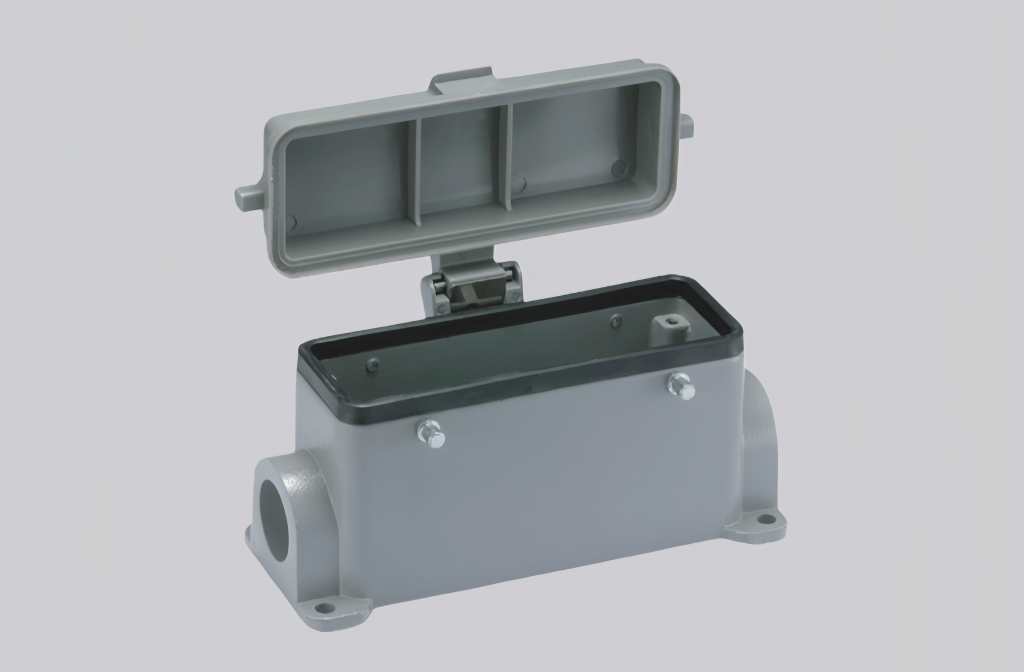

The H24B-SF-4B-CV-2M25 is a durable lower housing designed for industrial connectors, providing robust protection and stable performance in challenging environments. Its side cable outlet with a protective cover allows for organized cable routing and simplifies installation in confined or complex spaces.
Constructed from high-quality die-cast aluminum, the housing offers excellent mechanical strength, impact resistance, and corrosion durability. The RAL 7037 field gray powder-coated surface ensures long-lasting performance. Dual M25 threaded entries and the single-lock mechanism provide flexible and secure connector engagement.
Equipped with NBR seals and a metal elastic interlocking system, this housing effectively shields against dust, moisture, and vibration. The H24B-SF-4B-CV-2M25 is ideal for automation systems, industrial machinery, and power distribution applications requiring reliable performance and environmental protection.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
