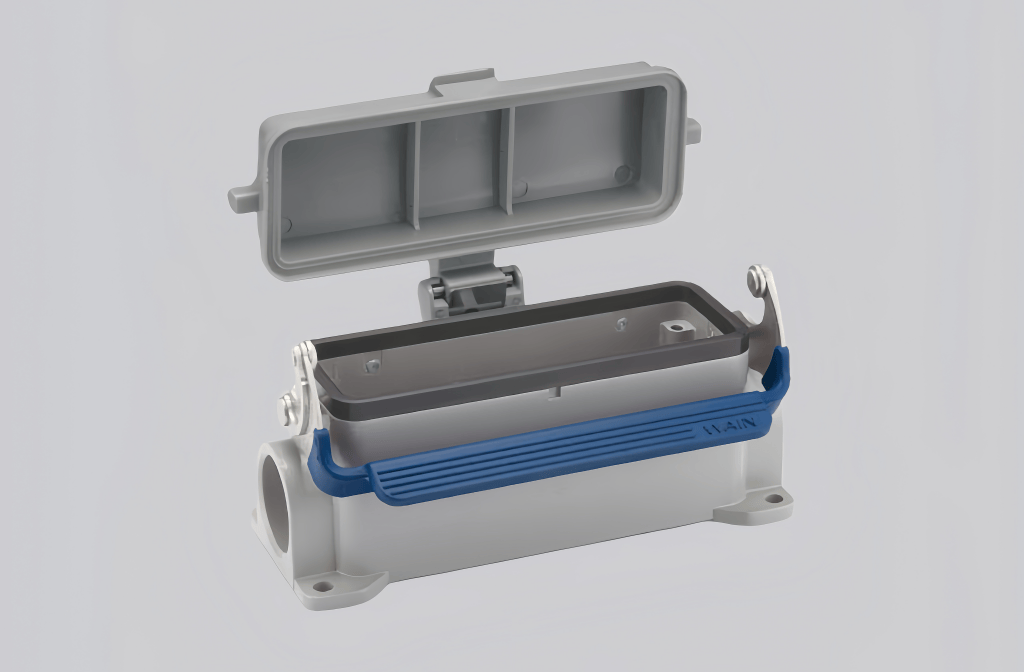

The H24B-SF-1L/SC-MCV-M25 is a classic regular rectangular connector housing designed for reliable industrial connections. With a 24B specification, it features a sealed lower housing and a side cable outlet with an M25 threaded entry, providing secure cable fixation and flexible wiring options. The single locking system ensures stable connections while allowing easy installation and maintenance.
Constructed from high-quality die-casting aluminum, the housing offers excellent mechanical strength and durability. Its surface is treated with powder coating in RAL 7037 field gray, enhancing corrosion resistance for harsh industrial environments. The metal elastic interlocking system, combined with stainless steel and TPR components, ensures long-lasting and dependable performance.
Equipped with NBR seals, the H24B-SF-1L/SC-MCV-M25 achieves an IP65 protection rating, effectively preventing dust and water ingress. With a UL94 V0 flame-retardant rating and a working temperature range from -40°C to +125°C, it is ideal for industrial automation, electrical installations, and other applications requiring secure, durable, and high-performance connectivity.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
