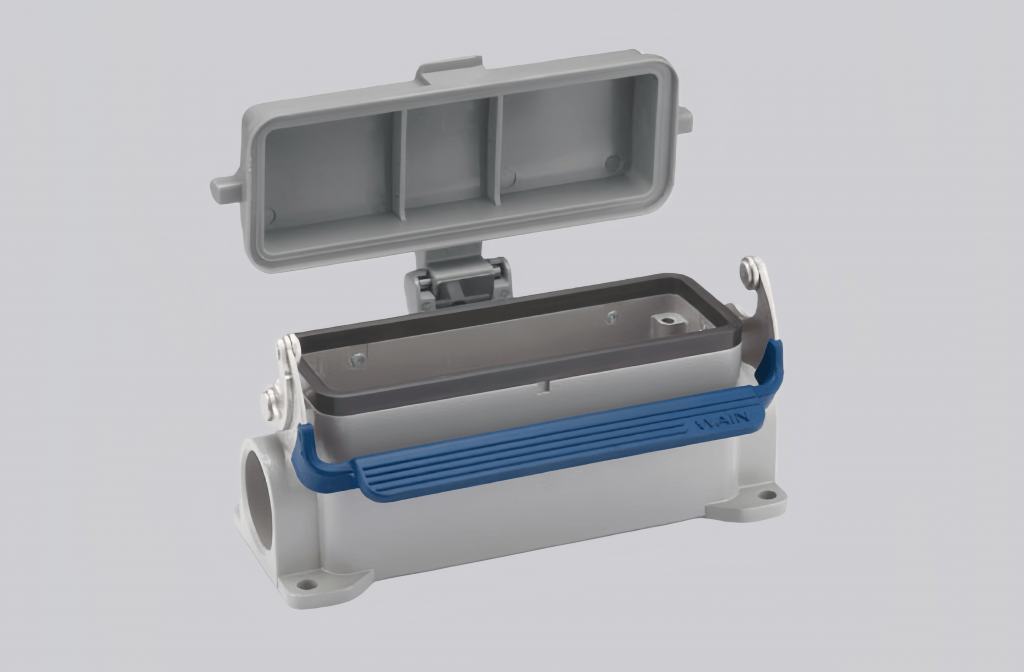

The H24B-SF-1L/SC-MCV-2M25 is a classic regular rectangular connector housing designed for reliable and flexible industrial connections. It features a 24B specification with a sealed lower housing and two side cable outlets with M25 threaded entries, allowing secure cable fixation and organized wiring. The single locking system ensures stable connections while simplifying installation and maintenance.
Made from high-quality die-casting aluminum, the housing provides excellent mechanical strength and durability. Its surface is finished with powder coating in RAL 7037 field gray for enhanced corrosion resistance. The metal elastic interlocking system, together with stainless steel and TPR components, guarantees dependable performance in demanding industrial environments.
Equipped with NBR seals, the H24B-SF-1L/SC-MCV-2M25 achieves IP65 protection, effectively guarding against dust and water ingress. With a UL94 V0 flame-retardant rating and a working temperature range from -40°C to +125°C, it is ideal for industrial automation, electrical installations, and other applications requiring secure, durable, and high-performance connectivity.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
