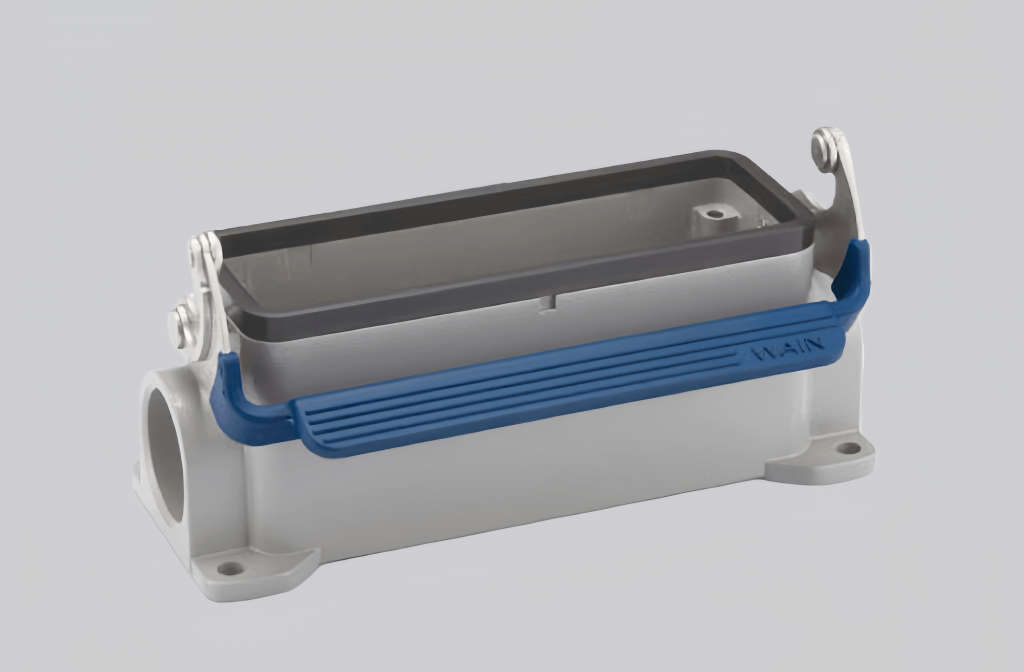

The H24B-SF-1L/SC-M25 is a classic regular rectangular connector housing designed to meet the requirements of reliable industrial connectivity. With a 24B specification, it features a sealed lower housing structure and a side cable outlet, allowing flexible installation in control cabinets and machinery. The single locking system ensures secure and stable mating while maintaining ease of operation during installation and maintenance.
Constructed from high-quality die-casting aluminum, the housing offers excellent mechanical strength and resistance to vibration and impact. The surface is treated with durable powder coating in RAL 7037 field gray, providing enhanced corrosion protection in demanding industrial environments. The metal elastic interlocking method further improves connection stability and long-term reliability.
Equipped with NBR seals, the H24B-SF-1L/SC-M25 achieves a high protection rating, effectively preventing dust and water ingress. The M25 threaded cable entry ensures firm cable fixation and strain relief. With a wide working temperature range and dependable performance, it is ideal for industrial automation, power distribution, and electrical equipment applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
