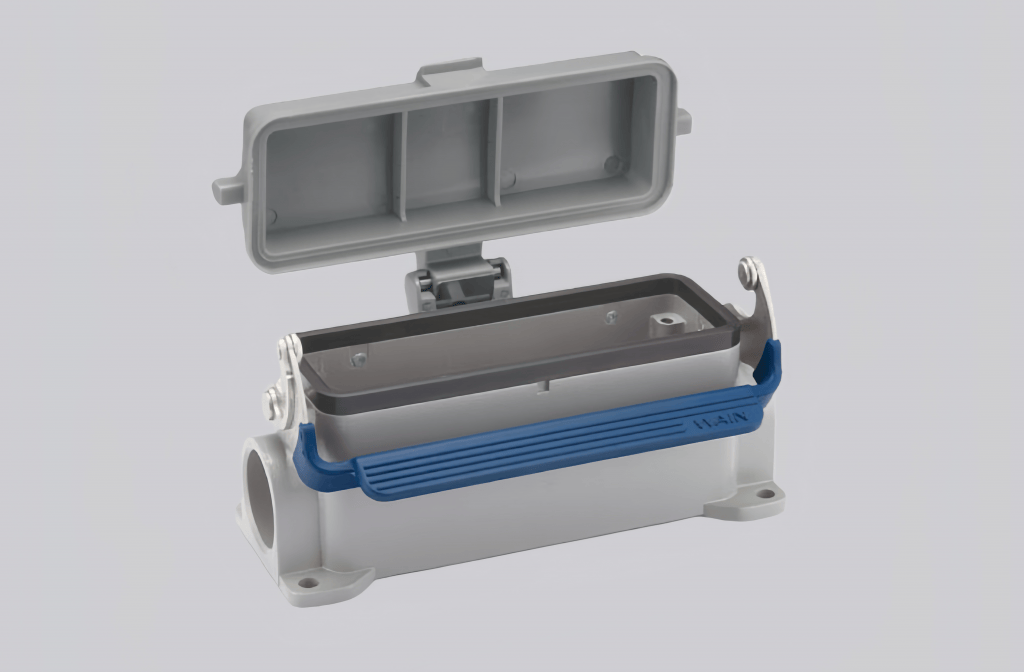

The H24B-SF-1L/SC-CV-PG21 is a classic regular rectangular connector housing designed for dependable industrial connections. Featuring a 24B specification, it has a sealed lower housing with a side cable outlet and a PG21 threaded entry, allowing secure cable fixation and organized wiring. The single locking system ensures stable connections while enabling easy installation and maintenance.
Constructed from high-quality die-casting aluminum, the housing provides excellent mechanical strength and durability. Its surface is treated with powder coating in RAL 7037 field gray, offering superior corrosion resistance. The metal elastic interlocking system, combined with stainless steel and TPR components, ensures reliable and long-lasting performance in harsh industrial environments.
Equipped with NBR seals, the H24B-SF-1L/SC-CV-PG21 achieves IP65 protection, effectively preventing dust and water ingress. With a UL94 V0 flame-retardant rating and a working temperature range from -40°C to +125°C, it is ideal for industrial automation, electrical installations, and other applications requiring secure, durable, and high-performance connectivity.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG21 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
