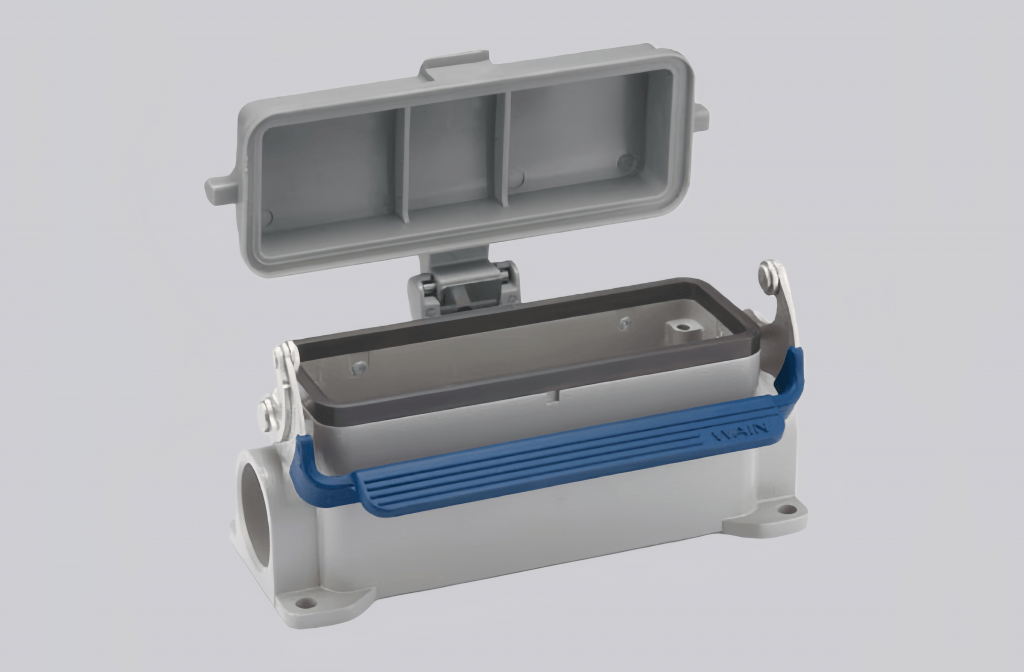

The H24B-SF-1L/SC-CV-M25 is a classic regular rectangular connector housing engineered for reliable and safe industrial connections. With a 24B specification, it features a sealed lower housing with a side cable outlet and M25 threaded entry, accommodating cable conduits for organized wiring. The single locking system ensures secure mating and easy handling during installation and maintenance.
Constructed from high-quality die-casting aluminum, the housing provides strong mechanical protection and long-lasting durability. Its surface is treated with powder coating in RAL 7037 field gray, offering excellent corrosion resistance. The metal elastic interlocking system, combined with stainless steel and TPR components, ensures stable and dependable performance in demanding industrial environments.
Equipped with NBR seals, the H24B-SF-1L/SC-CV-M25 achieves IP65 protection, effectively preventing dust and water ingress. With a UL94 V0 flame-retardant rating and a working temperature range of -40°C to +125°C, this housing is ideal for industrial automation, electrical installations, and power distribution applications that require secure and durable connectivity.

Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
