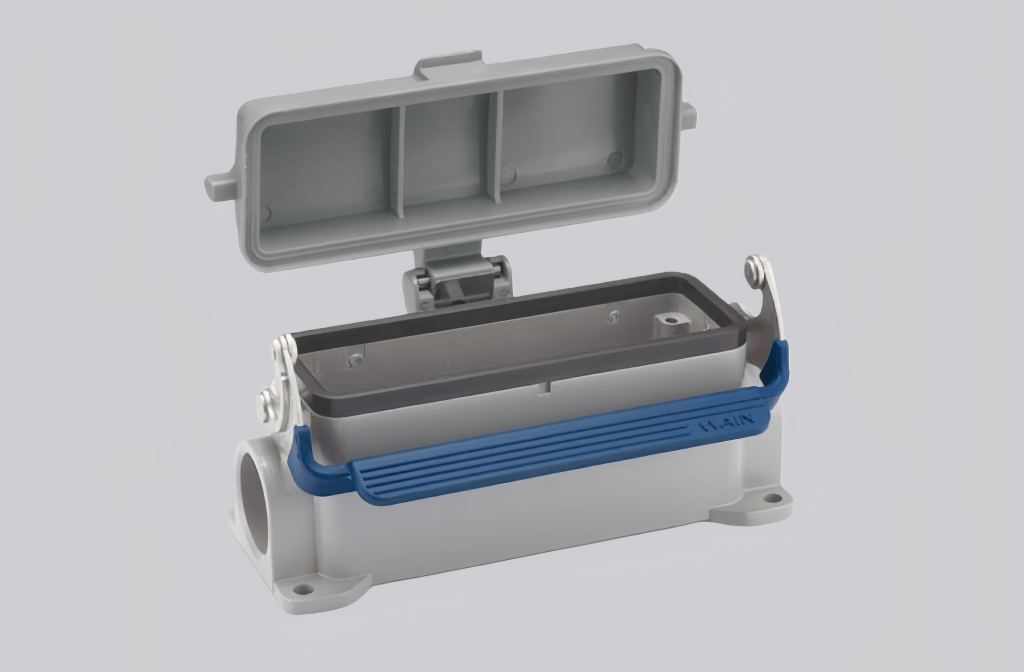

The H24B-SF-1L/SC-CV-2PG21 is a classic regular rectangular connector housing designed for reliable industrial connections. It features a 24B specification with a sealed lower housing and two side cable outlets with PG21 threaded entries, allowing flexible wiring and secure cable management. The single locking mechanism ensures stable mating while enabling easy installation and maintenance in machinery and control systems.
Made from high-quality die-casting aluminum, the housing offers excellent mechanical strength and long-lasting durability. Its surface is finished with powder coating in RAL 7037 field gray, providing superior corrosion resistance. The metal elastic interlocking system, combined with stainless steel and TPR components, guarantees consistent and dependable performance under demanding industrial conditions.
Equipped with NBR seals, the H24B-SF-1L/SC-CV-2PG21 achieves an IP65 protection rating, effectively protecting against dust and water ingress. With a UL94 V0 flame-retardant rating and a working temperature range of -40°C to +125°C, this housing is ideal for industrial automation, electrical installations, and applications that require secure, durable, and high-performance connectivity.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG21 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
