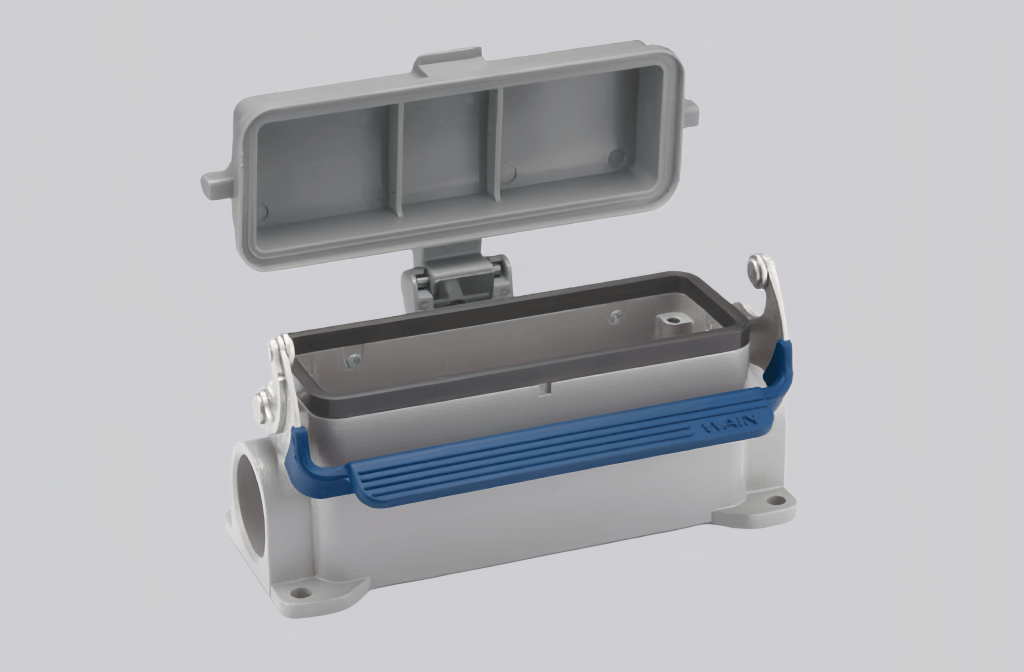

The H24B-SF-1L/SC-CV-2M25 is a classic regular rectangular connector housing designed for reliable industrial connectivity. It features a 24B specification with a sealed lower housing and two side cable outlets with M25 threaded entries, allowing flexible wiring and secure cable management. The single locking mechanism ensures stable connections and easy installation in control cabinets and machinery.
Made from high-quality die-casting aluminum, the housing provides excellent mechanical strength and long-term durability. Its surface is finished with powder coating in RAL 7037 field gray for enhanced corrosion resistance. The metal elastic interlocking system, along with stainless steel and TPR components, ensures consistent and dependable performance under demanding industrial conditions.
Equipped with NBR seals, the H24B-SF-1L/SC-CV-2M25 achieves an IP65 protection rating, effectively guarding against dust and water ingress. With a UL94 V0 flame-retardant rating and a wide working temperature range from -40°C to +125°C, it is ideal for industrial automation, electrical installations, and other applications requiring secure, durable, and long-lasting connectivity.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Housing overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
