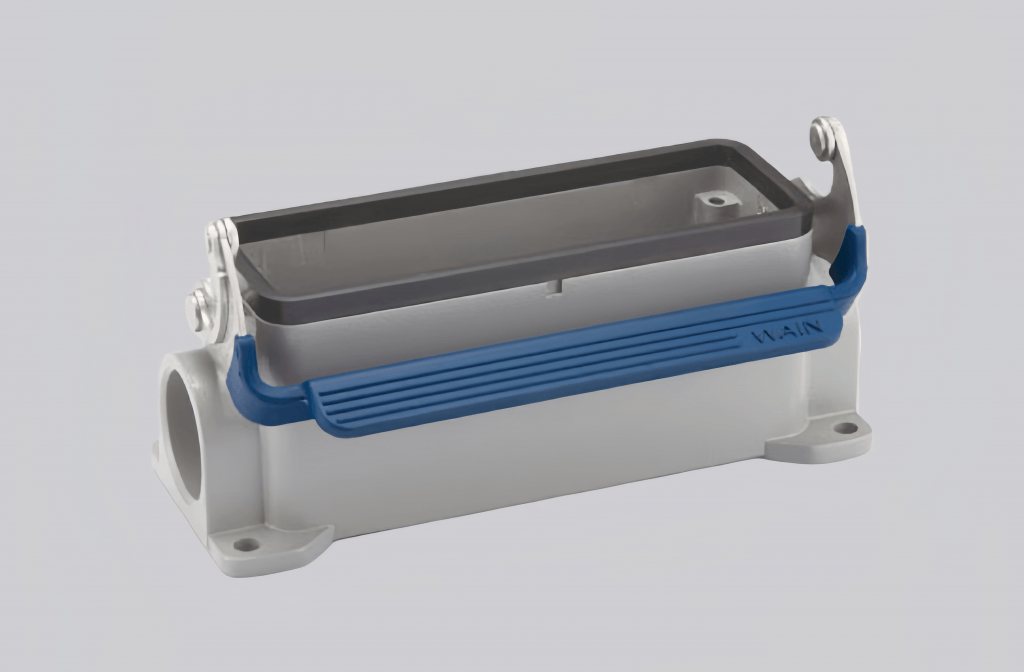

The H24B-SF-1L/SC-2PG21 is a classic regular rectangular connector housing designed for dependable industrial connectivity. Featuring a 24B specification, it has a sealed lower housing with two PG21 threaded side cable outlets, allowing flexible wiring and secure cable fixation. The single locking mechanism ensures stable connections while facilitating easy installation and maintenance in control systems and machinery.
Manufactured from high-quality die-casting aluminum, the housing offers excellent mechanical strength and durability. Its surface is finished with powder coating in RAL 7037 field gray, providing superior corrosion resistance. The metal elastic interlocking system, combined with stainless steel and TPR components, guarantees reliable performance even in harsh industrial environments.
Equipped with NBR seals, the H24B-SF-1L/SC-2PG21 achieves an IP65 protection rating, effectively protecting against dust and water ingress. With a UL94 V0 flame-retardant rating and a working temperature range of -40°C to +125°C, it is ideal for industrial automation, electrical installations, and other applications requiring secure, long-lasting connectivity.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG21 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
