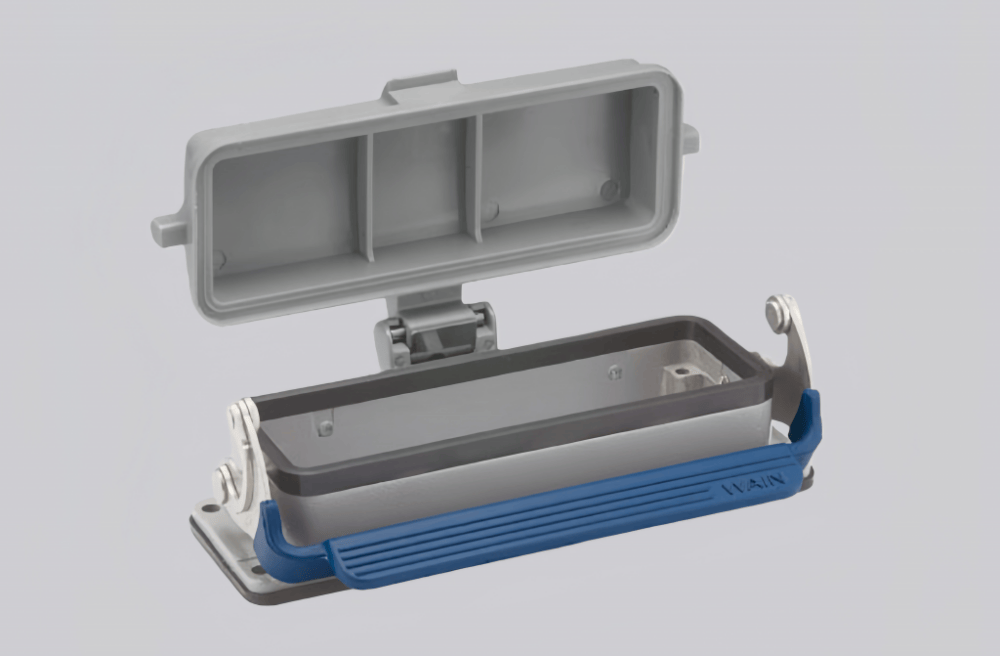

The H24B-BK-1L/SC-MCV is a robust rectangular connector housing designed for reliable performance in industrial automation and power transmission applications. It belongs to the classic regular housing series with a 24B size, offering ample internal space for complex wiring requirements. The housing features a bottom cable outlet and a single locking system, ensuring stable and secure connections during operation.
Manufactured from high-quality die-casting aluminum, the housing provides excellent mechanical strength, impact resistance, and long service life in demanding environments. Its surface is treated with durable powder coating in RAL 7037 field gray, enhancing corrosion resistance and suitability for harsh industrial conditions. The integrated sealing structure effectively protects internal components from dust and moisture.
The H24B-BK-1L/SC-MCV is widely used in machinery, control cabinets, and electrical installations where dependable connectivity is essential. Its standardized design allows easy installation, maintenance, and compatibility with matching inserts and accessories.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Unsealed cover |
| Housing overview | Metal cap |
| Outgoing method | Bottom outlet |
| Locking type | Single lock |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel+TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
