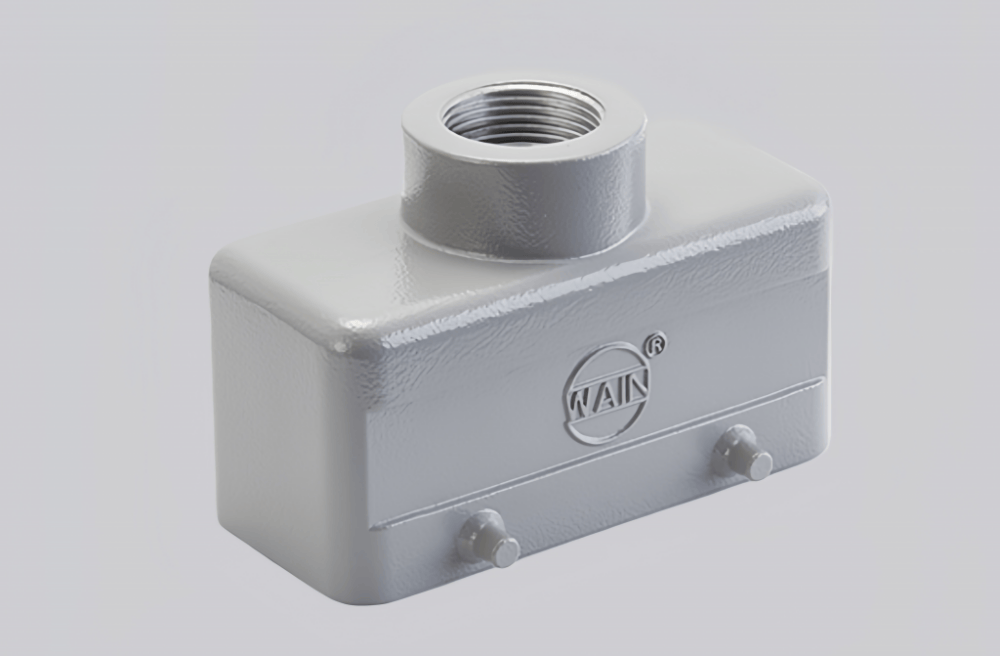

The H16B-TE-4B-M25 is designed for industrial connection applications where secure termination and structural stability are required. It features a top entry upper housing with a four-bolt fixing system, allowing reliable mounting on panels, enclosures, or equipment interfaces. The M25 cable entry supports orderly wiring and efficient use of installation space.
Constructed from durable die-cast aluminum, the housing provides strong mechanical protection and long-term reliability in demanding environments. A powder-coated finish in RAL 7037 field gray improves resistance to corrosion and surface wear. Integrated sealing elements help protect internal connections from dust and external influences, supporting stable operation.
The H16B-TE-4B-M25 is suitable for automation systems, industrial machinery, and control cabinets. With its practical top-entry design, robust mounting structure, and dependable material selection, it offers a reliable solution for applications that require secure installation and consistent performance over time.

Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Surface mounting upper housing |
| Outgoing method | Top outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
