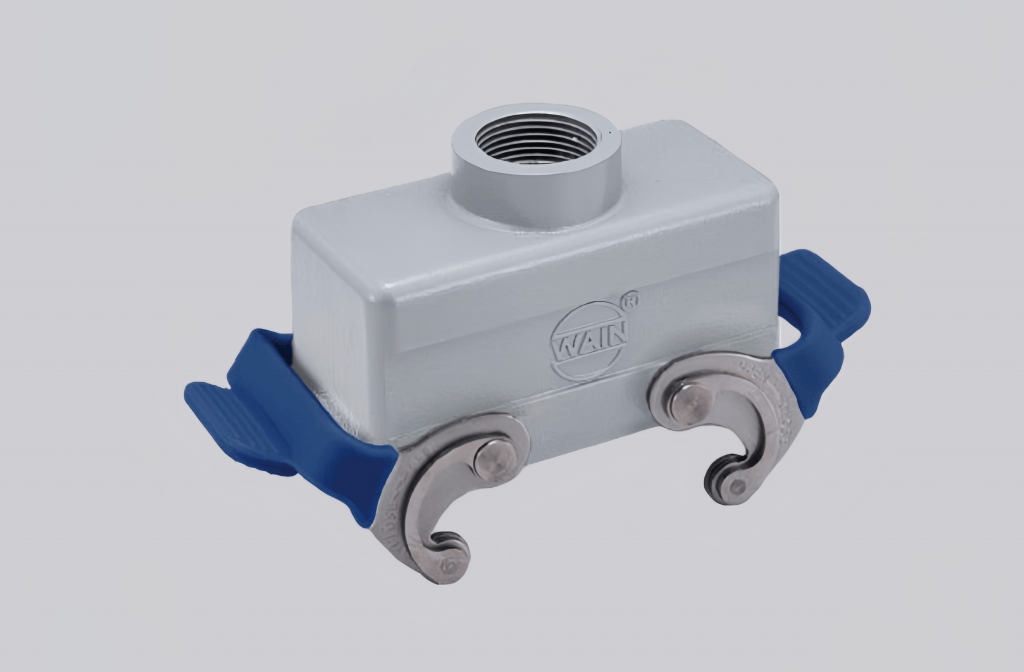

The H16B-TE-2L/SC-M25 is a 16B classic regular upper housing featuring a top entry design, making it suitable for industrial installations with limited space or vertical cable routing requirements. The dual locking mechanism enhances connection security and ensures stable mating during equipment operation. The M25 threaded entry allows easy integration of standard industrial cables.
The housing body is made of die-cast aluminum, providing a strong and durable structure for long-term industrial use. Its surface is finished with RAL 7037 field gray powder coating, offering effective resistance to corrosion and mechanical wear. A metal elastic interlocking method combined with stainless steel and TPR components improves overall structural stability. NBR seals are used to reduce the impact of external environmental factors on internal connections.
With an operating temperature range from -40°C to +125°C, this model meets the demands of harsh industrial environments. It complies with UL94 V0 flame retardant requirements and offers an IP65 protection rating, making it well suited for use in automation systems, control cabinets, and industrial equipment where safety and reliability are essential.

Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Surface mounting upper housing |
| Outgoing method | Top outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
