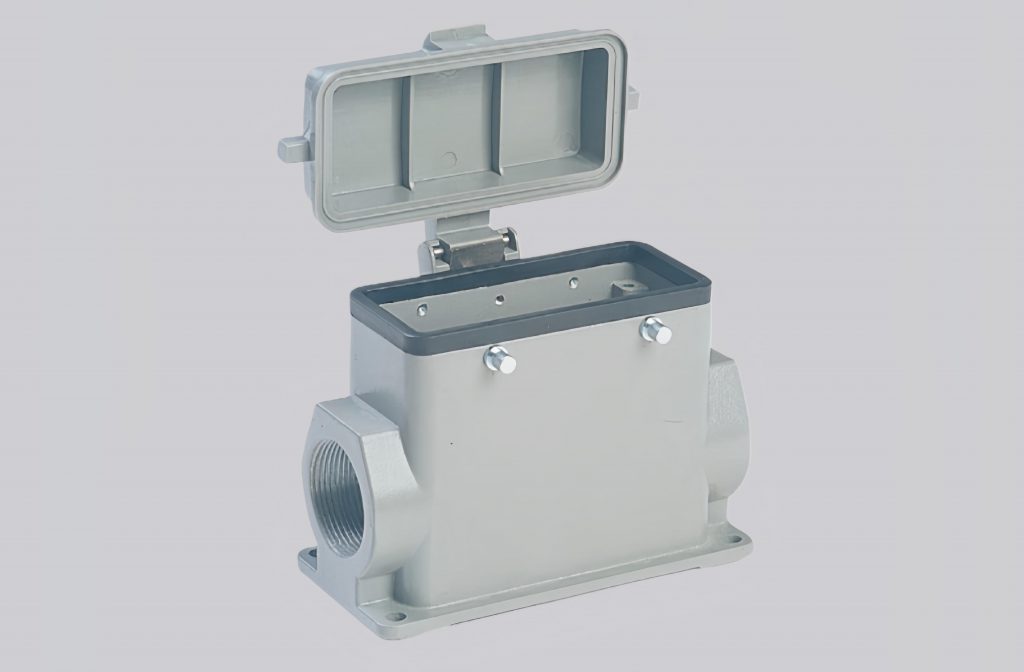

The H16B-SFH-4B-MCV-2PG29 is designed for industrial environments that require secure dual-cable connections and reliable mechanical protection. Built on the standard 16B housing size, it is suitable for use in automation systems, machinery, and power distribution equipment.
This model features a sealed housing structure with two PG29 threaded cable entries and integrated metal cable clamps (MCV). The dual entries allow independent cable routing with effective strain relief, while the clamps ensure stable fixation and connection integrity even under vibration or mechanical stress.
Constructed from die-cast aluminum with a durable surface treatment, the housing provides excellent mechanical strength and corrosion resistance. The H16B-SFH-4B-MCV-2PG29 is ideal for applications demanding robust construction, organized dual-cable management, and long-term reliable performance.

Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | PG29 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
